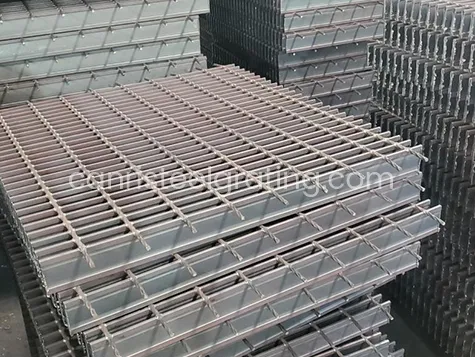

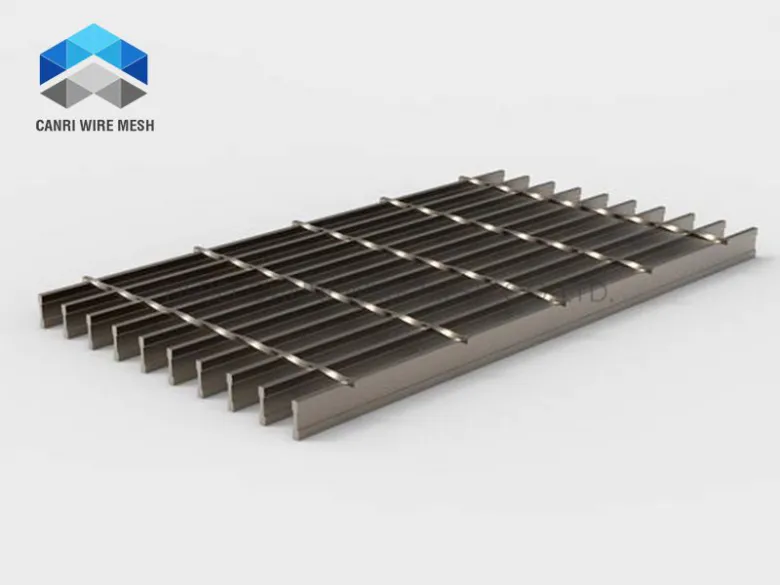

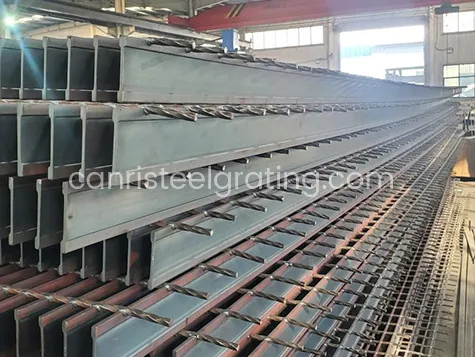

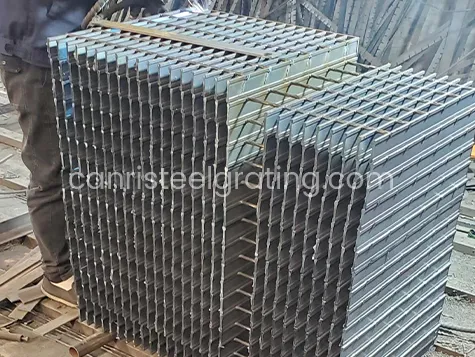

I-type steel grating, also known as I-shaped steel grating, is a steel grating product which uses "I"-shaped load-bearing bars as the main load-bearing material. The cross-sectional shape of the I-type load-bearing bar is similar to the letter "I", with a thinner middle part and wider upper and lower sides.Opt for lightweight and economical I-bar steel grating without compromising on load-bearing strength.Support extreme loads in industrial zones with our robust heavy duty steel grating engineered for maximum durability.

I-bar steel grating is a lighter and more economical option compared to traditional flat bar steel grating. The I-shaped bearing bars provide equal strength to rectangular bars while reducing weight. Suitable for both commercial and industrial applications, I-bar grating is available in carbon steel, galvanized steel, or stainless steel, offering a combination of high strength and lightweight durability.

Specification：

Why Choose I Bar Steel Grating?

• Lower panel weight: I-shaped bearing bars help reduce steel consumption and handling weight compared with many conventional flat-bar designs.

• Open-grid design: Supports drainage, ventilation, light transmission, and easier removal of loose debris.

• Practical for fabricated steelwork: Suitable for cut-outs, edge banding, non-standard panel sizes, and project-based fabrication.

• Material flexibility: Available in carbon steel, galvanized steel, or stainless steel according to corrosion and service-environment requirements.

• Plain or serrated surfaces: Select a smooth surface for general access areas or serrated bearing bars where improved slip resistance is required.

• Multiple pitch options: Bearing bar and cross-bar spacing can be selected according to access, drainage, heel-safety, and project specification requirements.

Typical Applications

I Bar Steel Grating is commonly specified for:

• Industrial working platforms

• Plant maintenance walkways

• Steel structure access floors

• Equipment service platforms

• Stair treads and landings

• Pump rooms and utility areas

• Water treatment and drainage access areas

• Power plant and substation walkways

• Factory mezzanines

• Metal ceiling and architectural grid applications

For wet, oily, dusty, or higher-slip-risk environments, serrated I-bar grating may be a more suitable option. For vehicle traffic, exceptionally long spans, or high concentrated loads, please request a review of heavy-duty grating alternatives.

Select the Right Grating Type for Your Project

Material and Surface Options

Mild Steel I Bar Grating

A cost-effective option for indoor or controlled environments. It can be supplied untreated, painted, powder coated, or hot-dip galvanized depending on the required corrosion protection.

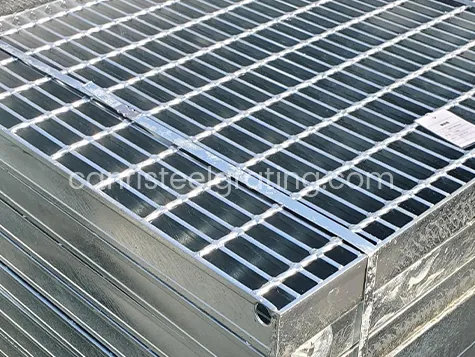

Hot-Dip Galvanized I Bar Grating

Recommended for outdoor structures, humid environments, industrial plants, utility areas, and applications requiring longer-term corrosion protection.

Stainless Steel I Bar Grating

Suitable for applications that require enhanced corrosion resistance, hygiene, or compatibility with demanding operating environments. Please specify the required stainless steel grade and project standard.

Plain Surface

A standard surface choice for dry and general industrial access areas.

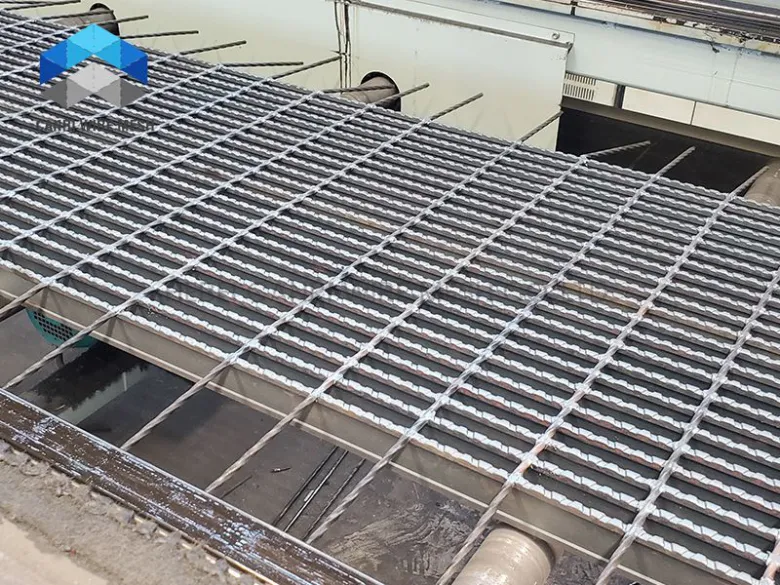

Serrated Surface

Designed for locations where additional slip resistance is required, such as wet walkways, oily platforms, exterior stairs, or process areas with frequent contamination.

1. Material types

Type 1: Mild steel	Type 2: galvanized steel	Type 3: stainless steel

2. Surface types

Type 1: Plain surface	Type 2: Serrated surface

Custom I Bar Steel Grating Fabrication

Canri Wire Mesh can review project requirements for custom-fabricated I bar grating. To help reduce on-site cutting and installation time, provide your panel schedule, layout drawing, or fabrication list.

Custom options may include:

• Panel length and width

• Bearing bar height, thickness, and pitch

• Cross-bar spacing

• Plain or serrated I-bar surface

• Mild steel, galvanized steel, or stainless steel material

• Cut-outs for pipes, columns, handrails, valves, and equipment supports

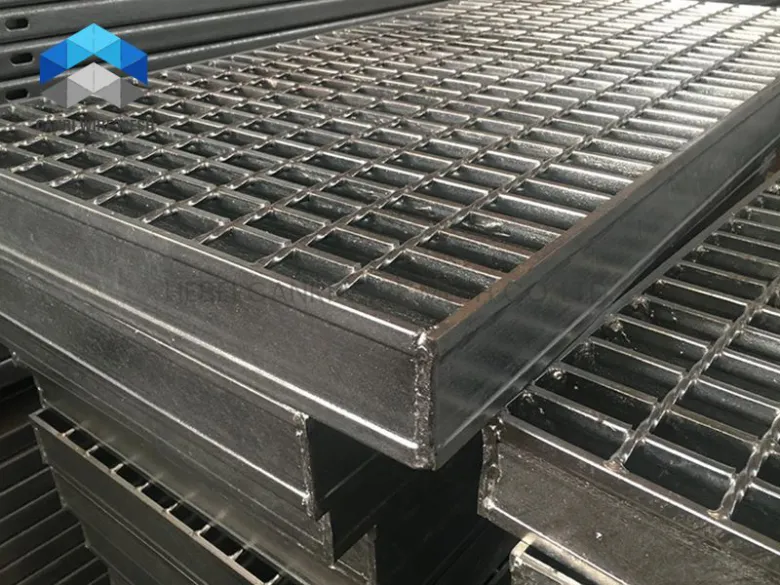

• Edge banding and end-band treatment

• Notches, corners, irregular shapes, and drawing-based panels

• Stair treads and landing panels

• Toe plates or kick plates

• Mounting clips and installation accessories

• Marking, labeling, packing identification, or project-based packing requirements

Packaging and Delivery

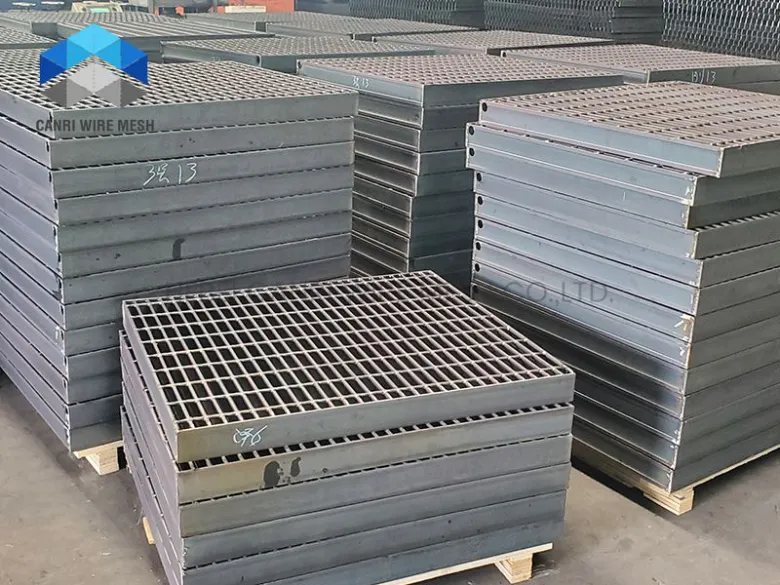

I Bar Steel Grating panels are typically packed on pallets, secured with steel straps, and prepared for sea shipment. Packaging can be adjusted according to panel size, container loading requirements, and customer instructions.

• Payment Terms: T/T

• Standard Packaging: Palletized and steel-strapped for sea shipment

• Typical Lead Time: Approximately 15 days for one 20GP container under standard order conditions

• Custom Orders: Production time depends on drawing complexity, quantity, material, coating, and packaging requirements

Frequently Asked Questions

Is I Bar Steel Grating suitable for heavy-duty applications?

I-bar grating can be selected for many industrial applications, but suitability depends on the bearing-bar profile, spacing, clear span, support arrangement, and actual loading condition. For vehicle traffic, high concentrated loads, or demanding spans, request an engineering review and compare heavy-duty grating options.

Should I choose plain or serrated I-bar grating?

Plain grating is commonly used in dry, general-access areas. Serrated I-bar grating is generally preferred where water, oil, dust, outdoor exposure, or higher slip risk may affect pedestrian safety.

Can I order non-standard panel sizes?

Yes. Send your drawings, cut list, or panel schedule for review. Custom fabrication may include panel sizing, cut-outs, edge banding, irregular shapes, and project-specific layouts.

Which material should I choose?

Mild steel may suit indoor or protected installations. Hot-dip galvanized steel is often selected for outdoor and corrosion-prone areas. Stainless steel may be considered where stronger corrosion resistance or hygiene requirements are needed. Final material selection should reflect the operating environment and project specification.

What information is needed for a quotation?

Please provide dimensions, quantity, span, loading condition, material, surface treatment, required standard, drawing or photos, and destination port or city.

Can you provide load tables or drawings?

Load and span information should be matched to the actual I-bar design and project conditions. Send the required span, loading condition, bearing-bar direction, and selected profile so the appropriate technical information can be confirmed.

Request a Quote for I Bar Steel Grating

Tell us what you are building, and we will help you confirm a practical grating solution for your project.
