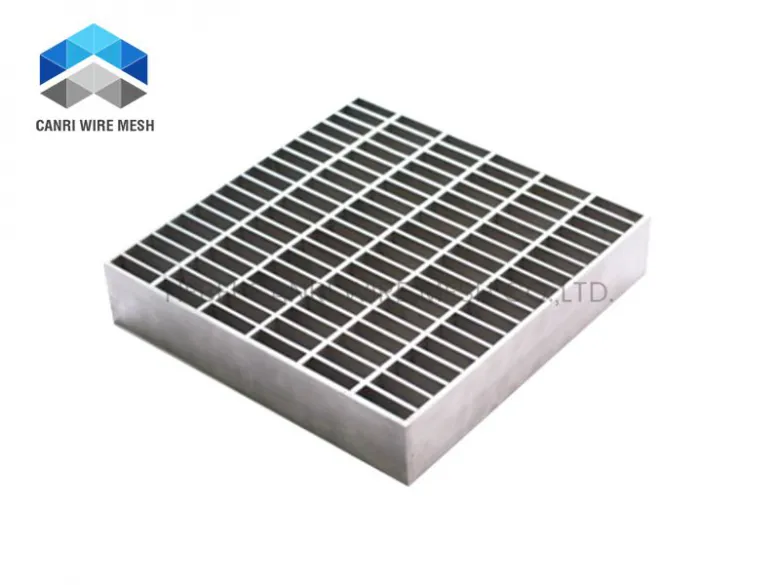

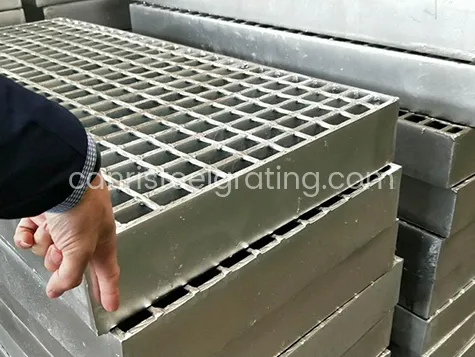

Heavy Duty Welded Bar Grating consists of rectangular shaped bearing bars that are thicker and usually times higher than traditional standard. Heavy Duty steel Grating enables it to bear heavier loads. If your application requires maximum support for wheel and vehicular traffic,Heavy Duty Welded Bar Grating is the optimal choice. The stock inventory mainly include Carbon Steel and Galvanized Steel, while Stainless Steel and Powder Coated Carbon Steel are also available options.

What Makes Steel Grating "Heavy Duty"?

The distinction is structural, not marketing. According to ANSI/NAAMM standards, heavy duty steel grating is defined by:

Bearing bar thickness of ≥ 1/4" (6.35mm)
Standard duty grating uses bearing bars up to 3/16" (4.76mm) thick, governed by NAAMM MBG 531. Heavy duty grating starts at 1/4" minimum thickness under NAAMM MBG 532. This seemingly small difference translates to dramatically higher section modulus and load capacity.

Greater bearing bar depth

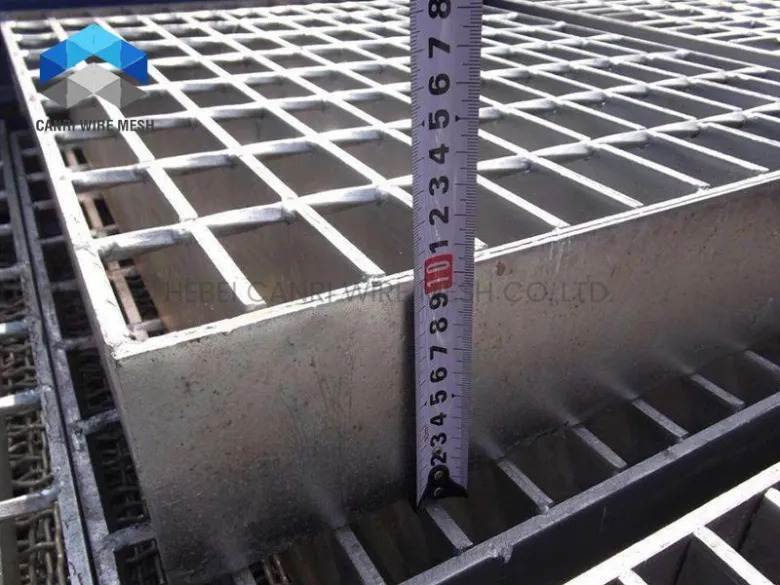

Heavy duty bars are also deeper — typically 1" to 6" (25mm to 150mm) — giving them the bending resistance needed to handle concentrated wheel loads from forklifts and trucks without deflecting beyond safe limits.

Closer cross bar spacing
Heavy duty grating typically uses 2" (50mm) cross bar pitch rather than the 4" (100mm) standard, increasing lateral rigidity and distributing impact loads more evenly across the panel.

Result: A heavy duty steel grating panel in the same footprint as a standard panel can support 3–5× the concentrated load — making it the only safe choice for vehicular traffic, industrial floor zones, and highway-rated drainage covers.

Heavy Duty Grating vs. Standard Duty Grating

1. This adaptable product offers reliable support for heavy - duty vehicles, ensuring safety. At the same time, it meets the drainage and airflow needs across a wide range of applications.

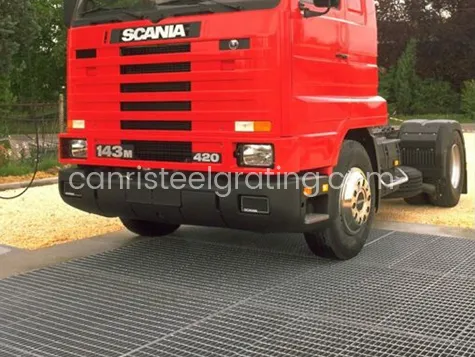

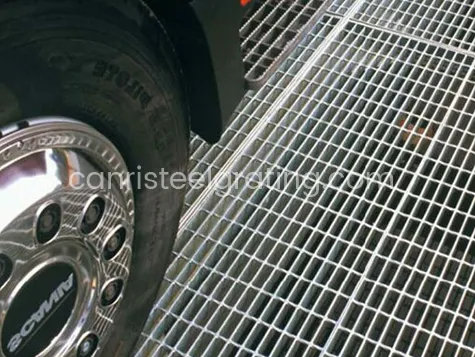

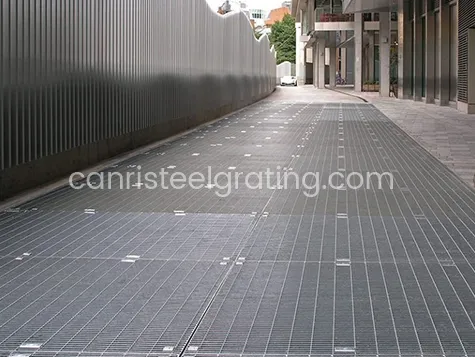

2. It has the capacity to bear the weight of various loads, ranging from the movement of heavy forklifts to military aircraft. It is suitable for use in loading docks, mezzanine floors, vault covers, material screens, and wash racks.

3. Heavy - duty grating is designed to facilitate quick drainage of rainwater and other liquids. Additionally, it helps streamline the ventilation and heating processes within buildings.

4. Numerous designers have found numerous cost - effective solutions by utilizing heavy - duty steel grating.

Material Options

Carbon Steel (ASTM A36 / GB Q235)

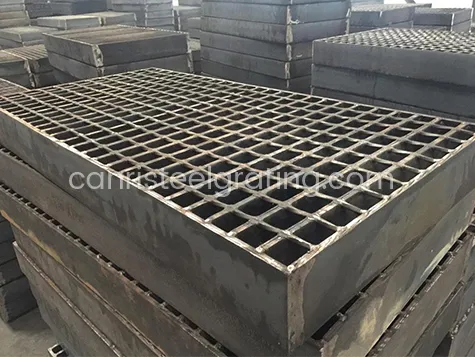

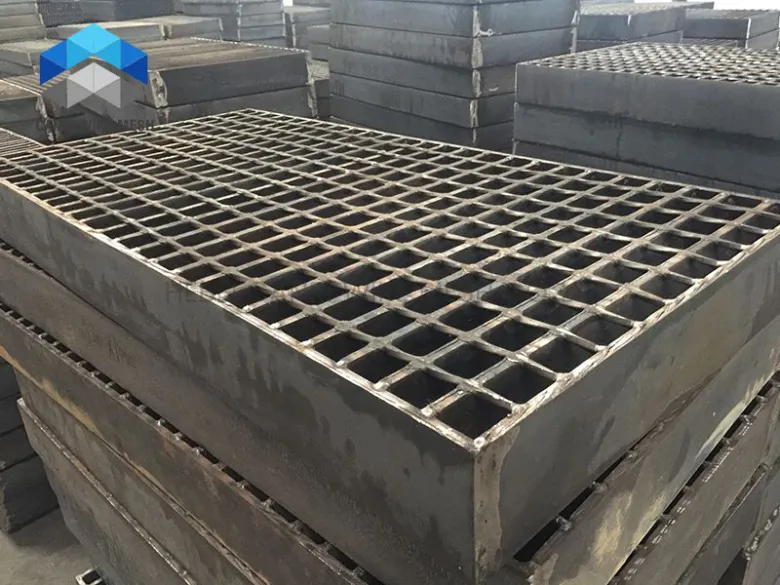

The standard material for heavy duty steel grating across the vast majority of applications. High strength, economical, and compatible with all surface treatment options. Default choice for loading docks, industrial floors, highway drainage, and bridge decking.

Galvanized Carbon Steel

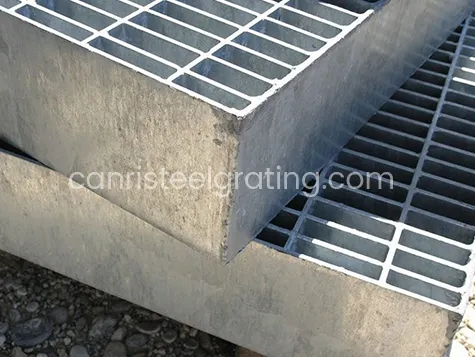

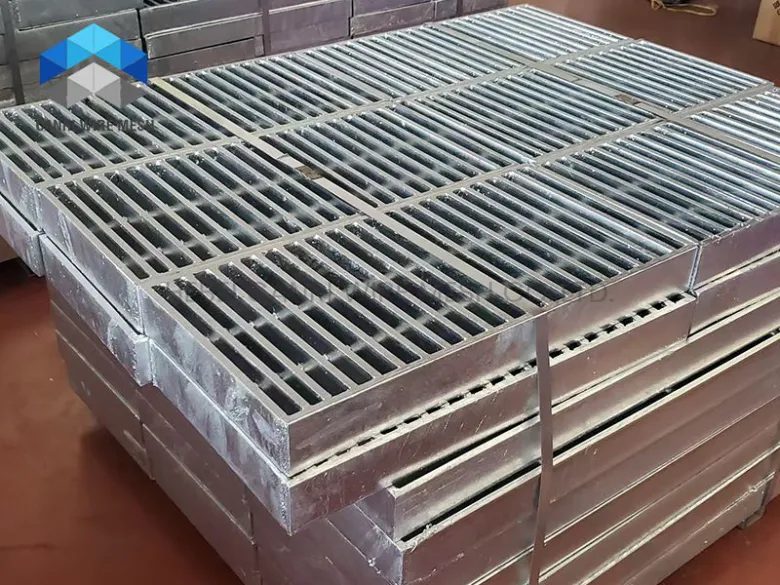

Hot-dip galvanized carbon steel heavy duty grating is the dominant specification for outdoor and corrosive-environment applications. The zinc coating provides sacrificial corrosion protection with an expected service life of 40–50+ years in industrial environments and 20–30 years in coastal/marine exposure.

Stainless Steel (304 / 316)

Specified for environments where carbon steel — even when galvanized — cannot provide adequate corrosion resistance. Food processing, chemical splash zones, pharmaceutical manufacturing, and marine deck applications are the primary drivers for stainless heavy duty steel grating. Type 316 is required where chloride exposure (seawater, de-icing salts) is present.

Compliance Standards

Canri heavy duty steel grating is manufactured to the following recognized international standards:

• ANSI/NAAMM MBG 532 — North American heavy duty bar grating standard (bearing bars ≥ 1/4")

• AASHTO Standard Specifications for Highway Bridges — H-10, H-15, H-20, H-25 vehicular load design basis

• ASTM A36 — Carbon steel material specification

• YB/T 4001.1-2007 — Chinese national steel grating standard

• BS 4592:1987 — British standard for open bar grating

• AS 1657-1985 — Australian standard for fixed platforms, walkways, stairways and ladders

Custom documentation including material test reports, mill certificates, and third-party inspection coordination is available for export projects.

Why Source Heavy Duty Steel Grating from Canri?

Factory-direct, no middleman markup

All heavy duty steel grating is manufactured in our own Hebei production facility. You buy at manufacturer price with direct quality control — no trading company in the chain inflating cost.

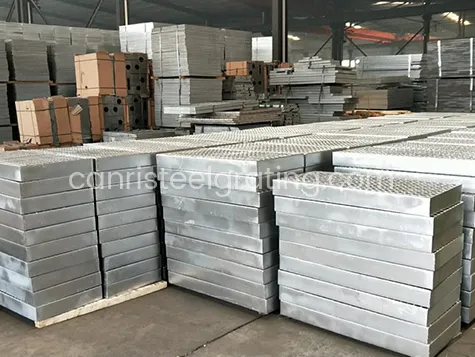

Bearing bars up to 100×10mm in stock

We maintain inventory of the most common heavy duty bearing bar dimensions and can produce custom sizes to your engineering specifications without minimum order penalties on most standard configurations.

Full surface treatment capabilities in-house

Hot-dip galvanizing, powder coating, and painting are available in-house. We do not outsource surface treatment, which ensures consistent quality and faster lead times.

Banding and fabrication included

We fabricate banded panels, panels with cutouts, and custom shapes as standard service items — not add-on charges. Provide your drawing and we will produce to dimension.

Export-ready documentation

Material certificates, test reports, packing lists, and all commercial shipping documentation are prepared for international buyers shipping to North America, Europe, the Middle East, Southeast Asia, and Australia.

Delivery: 15 days for 20GP container from order confirmation on standard configurations.

Need a load calculation, specification confirmation, or factory-direct quote for your heavy duty steel grating project? Send us your span, load condition, and panel dimensions — our technical team responds within 24 hours.
