Description of Steel Walkway Grating

Walkway grating is widely applied in ports, offshore areas, gardens, and pedestrian streets as walkways. In ports and offshore settings, it serves as either a permanent or temporary solution, being much more convenient to install and remove compared to concrete or other material-based ground or walkways.



For gardens and pedestrian areas, the walkway grating offers excellent air and water permeability. It reduces maintenance time and costs. It is an ideal choice for pedestrians wearing high-heeled shoes or roller skates to pass through easily, and is also suitable for wheelchairs, strollers, and other wheeled equipment.


Specification:


Steel Grating
No.TermsDescription
1MaterialLow carbon steel, mild steel, stainless steel
2Material standardGB700-88,ASTM(A36),BS4360(43A),AS3679
3Bearing bar size25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5, 30x5, 32x5,40x5,50x5,65x5.75x6,75x10.....100 x10mm etc;
I bar size: 25x5x3,30x5x3,32x5x3,40x5x3 etc;
US standard: 1"x3/16", 11/4”x3/16", 1 1/2”x3/16", 1"x1/4",1 1/4"x1/4", 1 1/2"x1/4",1"x1/8", 1 1/4"x1/8", 11/2"x1/8" etc
4Bearing bar pitch12.5,15,20,23.85,25,30,30.16,30.3,32.5,34.3,35,38.1,40,41.25,60,80mm etc.
US standard:19-w-4,15-w-4, 11-w-4,19-w-2,15-w-2 etc
5Cross bar pitch38.1,50,60, 76,80,100,101.6, 120mm, 2" & 4" etc
6Surface treatmentuntreated(black), hot-dipped galvanized ,powder coated,electroplate, painting or as per customers' requirement
7Grating standardYB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592 1987,AS1657-1985
8Bearing bar typeFLAT BAR / I-BAR / SERRATED BAR / SERRATED I-BAR
9ApplicationFloor, walkway,industrial platform,stair tread,metal ceiling
10FeatureFine appearance,anti-corrosive,simple installation,light weight, high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion
11Payment termsT/T
12PackagePallets in containers packed by steel strap and worthy sea shipping,or according to customers' requirement
13Delivery time15 days for a 20GP container
14RemarksOther sizes also can be customized according to customers' requirement


Key Features of Galvanized Metal Walkway Grating

Material and Structure: Made of high-quality steel bars welded or pressed into a grid pattern, ensuring strength and stability.

Easy Installation: Lightweight design allows for quick assembly and disassembly, reducing labor costs and time compared to concrete or solid flooring.

Durability: Resistant to corrosion, impact, and heavy foot traffic, suitable for both indoor and outdoor use, including harsh environments like ports and offshore areas.

Ventilation and Drainage: Open grid structure enables excellent air circulation and water drainage, preventing water accumulation and reducing slipperiness.

Safety and Accessibility: Provides a non-slip surface for pedestrians (including those in high-heeled shoes or roller skates) and allows smooth passage for wheelchairs, strollers, and other wheeled equipment.

Low Maintenance: Requires minimal upkeep—easy to clean and less prone to damage compared to traditional flooring materials.

Applications of Metal Walkway Grating

Industrial and Commercial: Ports, offshore platforms (as permanent or temporary walkways), factories, and logistics hubs.

Public Spaces: Gardens, pedestrian streets, parks, and urban walkways, enhancing both functionality and aesthetics.

Safety-Critical Areas: Locations requiring reliable flooring with high load-bearing capacity and anti-slip properties.

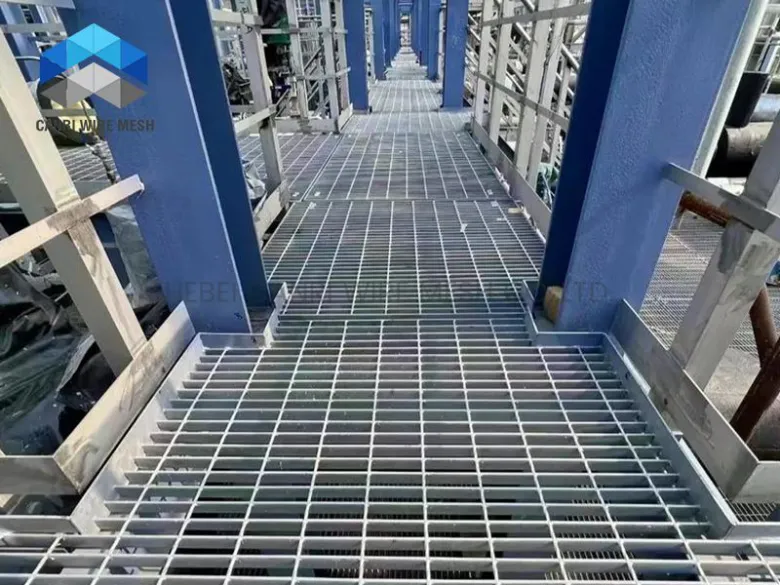

  • Offshore Oil Industry Walkway Steel Grating

    Offshore Oil Industry Walkway Steel Grating

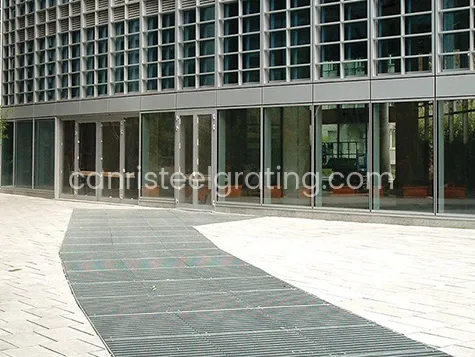

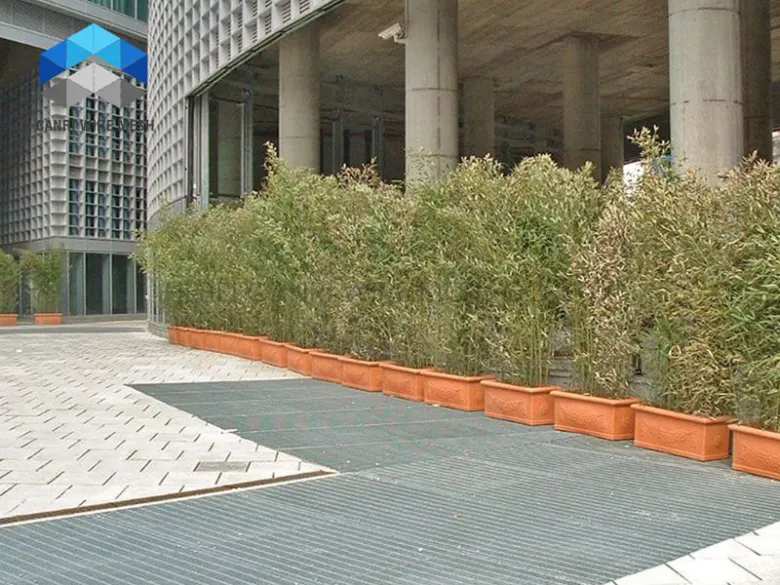

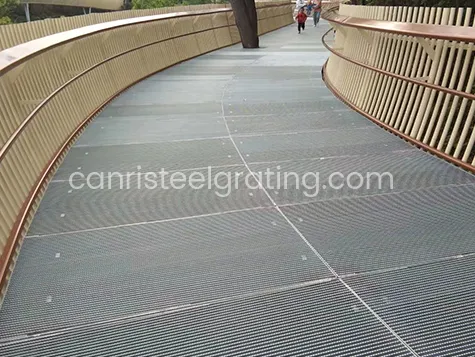

  • Urban Walkways Steel Grating

    Urban Walkways Steel Grating

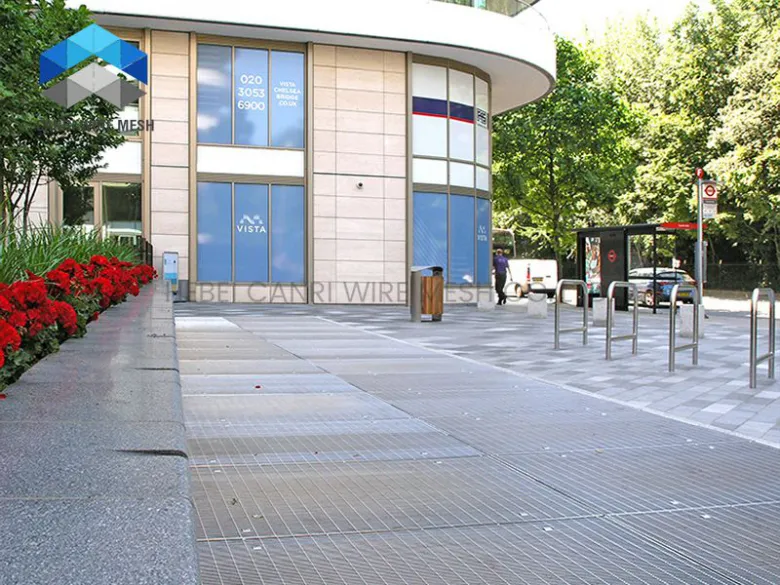

  • Pedestrian Streets Walkway Metal Grating

    Pedestrian Streets Walkway Metal Grating

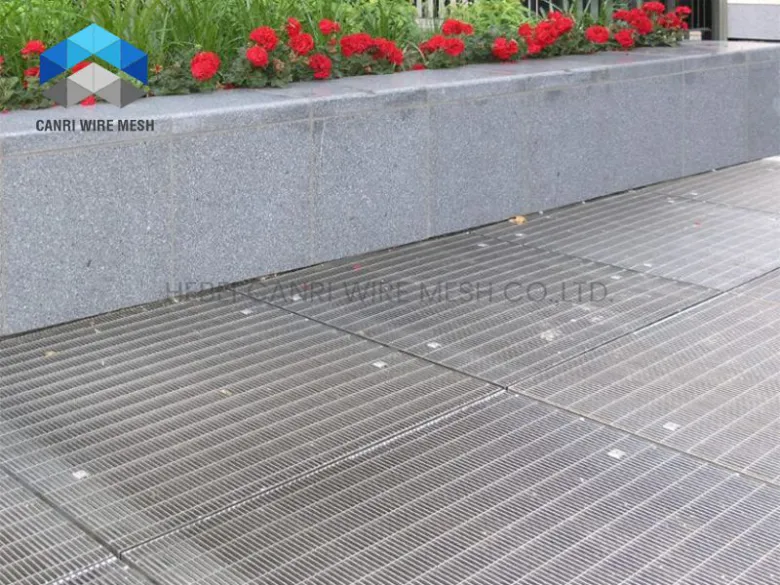

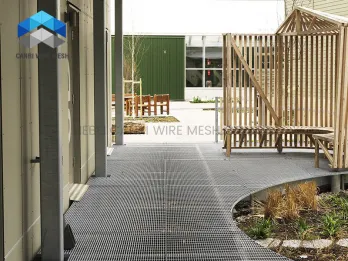

  • Galvanized Steel Walkway Grating Used In Garden

    Galvanized Steel Walkway Grating Used In Garden

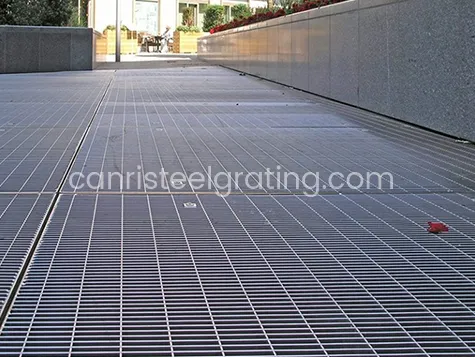

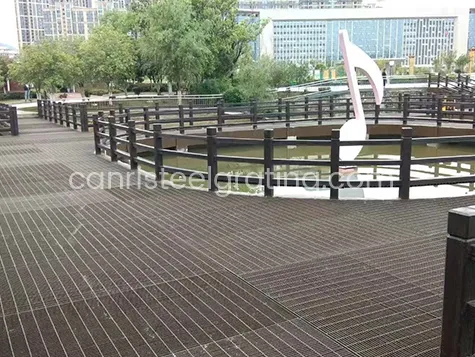

  • Galvanized Steel Walkway Grating Used In Parks

    Galvanized Steel Walkway Grating Used In Parks

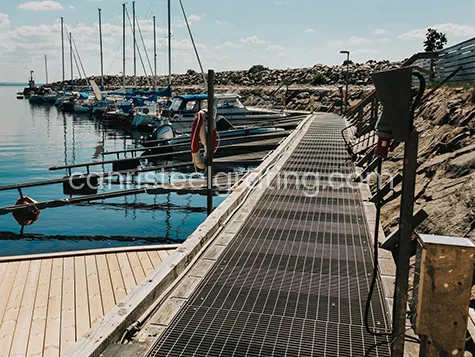

  • Galvanized Metal Walkway Grating Used In Port

    Galvanized Metal Walkway Grating Used In Port
