Product Description

Canri Wire Mesh is a special shaped steel grating manufacturer and supplier in China, providing custom-fabricated grating panels for industrial platforms, equipment access, architectural structures, and infrastructure projects. Available shapes include arc-shaped, circular, semicircular, fan-shaped, and irregular steel grating.

Made from low carbon steel, mild steel, or stainless steel, our custom shaped steel grating can be fabricated through cutting, punching, welding, and edge finishing according to project drawings and installation requirements.


Special Shaped Steel Grating Types and Specifications


Unlike standard rectangular panels, special shaped steel grating is fabricated to fit specific structural layouts, curved edges, openings, and non-standard installation spaces.


Available Shapes

  • Arc-Shaped Grating: For curved walkways, circular platforms, and architectural structures.

  • Circular Grating: For round openings, equipment bases, and access covers.

  • Semicircular Grating: For curved edges and partial circular structures.

  • Fan-Shaped Grating: For radial platforms, circular staircases, and curved access areas.

  • Irregular Steel Grating: For equipment layouts, non-standard platforms, and customized structures.

  • Hollow Round Grating: For circular openings and special equipment access requirements.


Main Specifications


SpecificationAvailable Options
MaterialLow Carbon Steel / Mild Steel / Stainless Steel
Material StandardsGB700-88 / ASTM A36 / BS4360 (43A) / AS3679
Bearing Bar Size25×3 to 100×10 mm
I-Bar Size25×5×3 / 30×5×3 / 32×5×3 / 40×5×3 mm
Bearing Bar Pitch12.5–80 mm
Cross Bar Pitch38.1–120 mm
Bearing Bar TypeFlat Bar / I-Bar / Serrated Bar / Serrated I-Bar
Surface TreatmentHot-Dip Galvanizing / Powder Coating / Electroplating / Painting / Untreated
Grating StandardsYB/T4001.1-2007 / ANSI/NAAMM MBG 531-88 / BS4592 / AS1657


Special Shaped Steel Grating Manufacturer and Supplier

Canri is a Special Shaped Steel Grating Manufacturer and Supplier in China, providing custom steel grating manufacturing based on customer drawings and project requirements. With over 15 years of metal fabrication experience, two large-scale pressure welding production lines, and CAD and 3D design capabilities, we support custom panel design and fabrication for irregular shapes and non-standard dimensions.


Why Choose Canri?

  • Manufacturing Experience: Over 15 years of experience in steel grating and metal fabrication.

  • Production Capacity: Two large-scale pressure welding production lines.

  • Custom Fabrication: CAD and 3D drawing support for special shapes and non-standard panels.

  • Quality Inspection: Checks on materials, welding, dimensions, and surface treatment.


Production and Quality Control


  • Drawing and dimension confirmation before production.

  • Bearing bar and cross bar spacing checks.

  • Welding quality and panel dimension inspection.

  • Cutting, punching, and edge finishing.

  • Surface treatment and final inspection.

  • Steel-strapped pallet packaging for sea shipment.


Request a Custom Grating Quotation

To evaluate your special shaped steel grating requirements, please provide:

  • CAD/PDF drawings or product sketches.

  • Overall dimensions and required shape.

  • Material and bearing bar specifications.

  • Surface treatment requirements.

  • Estimated quantity and application.


Canri can review your drawings and provide a suitable fabrication proposal and quotation.


Applications and Customization Options

Special shaped steel grating is used where standard rectangular panels cannot match the required installation geometry.


Typical applications include:

  • Industrial Platforms: Custom panels around equipment, pipes, columns, and structural supports.

  • Circular Tanks and Reactors: Arc-shaped and fan-shaped grating for inspection and maintenance platforms.

  • Transportation Infrastructure: Irregular panels for bridges, access structures, and special walkways.

  • Architectural Structures: Circular and curved grating for decorative and functional installations.

  • Marine and Petrochemical Facilities: Custom-fabricated grating for equipment access and maintenance areas.


Custom ItemAvailable Options
Panel ShapeCircular / Arc-Shaped / Semicircular / Fan-Shaped / Irregular
Panel DimensionsCustom Length and Width
Bearing BarsFlat Bar / I-Bar / Serrated Bar
Bar SpacingCustomized Bearing and Cross Bar Pitch
Cut-OutsCircular / Square / Irregular Openings
Edge TreatmentEdge Banding / Notching / Cutting
MaterialMild Steel / Stainless Steel
Surface TreatmentHot-Dip Galvanizing / Painting / Powder Coating


For accurate fabrication, buyers can provide CAD drawings, PDF drawings, dimensions, or physical samples.

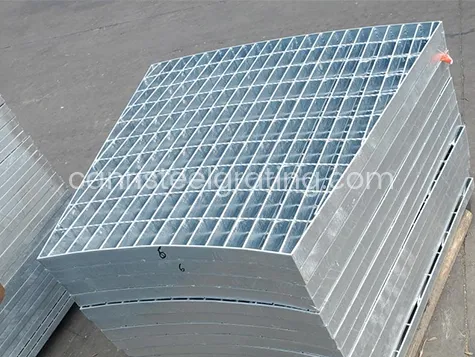

  • Type 1: arc-shaped steel grating

    Type 1: arc-shaped steel grating

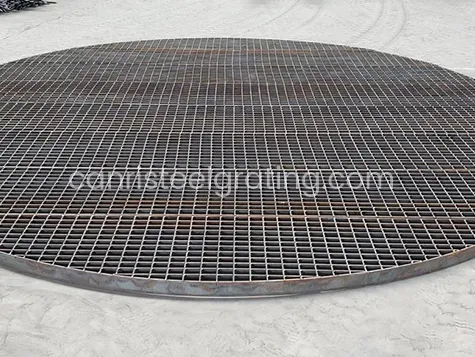

  • Type 2: circle steel grating

    Type 2: circle steel grating

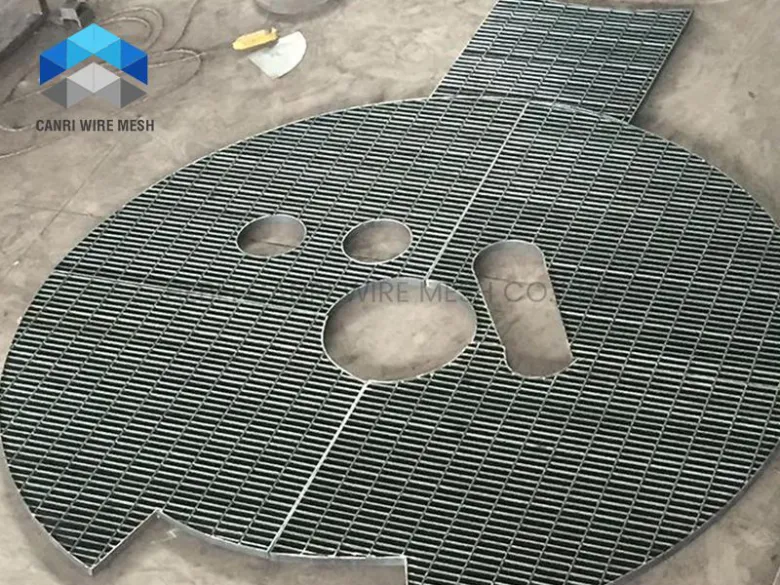

  • Type 3: irregular steel grating

    Type 3: irregular steel grating

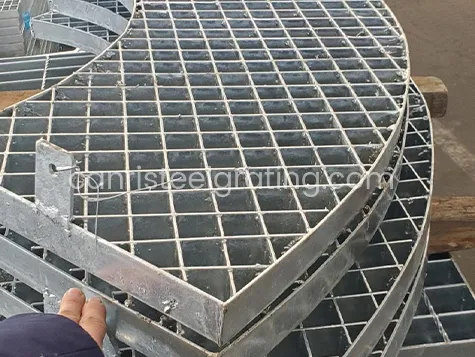

  • Type 4: semicircular steel grating

    Type 4: semicircular steel grating

  • Type 5: hollow round steel grating

    Type 5: hollow round steel grating

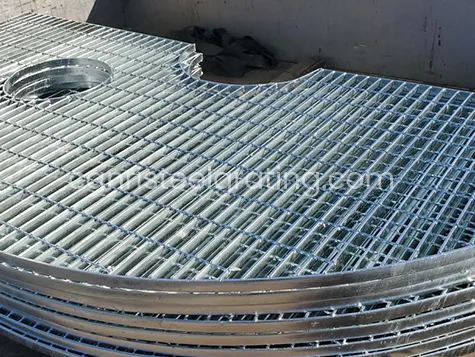

  • Type 6: fan shaped steel grating

    Type 6: fan shaped steel grating

Frequently Asked Questions

What types of Singapore drain grating does Canri supply?

Canri supplies house drain grating, pedestrian grating, vehicular grating, hinged drain covers, tray grating, and stainless steel drain grating.


What is the difference between pedestrian and vehicular drain grating?

Pedestrian grating is designed for walking areas, while vehicular grating requires a structure selected according to vehicle loads, clear span, and frame support. The two should not be interchanged based on dimensions alone.


Can drain grating be customized to fit existing frames?

Yes. Provide the clear opening, frame dimensions, seating depth, and installation photos so that the replacement panel can be manufactured to fit.


Should I choose galvanized steel or stainless steel drain grating?

Hot-dip galvanized steel is a practical option for many outdoor drainage applications. SS304 and SS316 can be considered where stainless steel corrosion resistance is required. The choice depends on the environment and project specifications.


Can Canri supply hinged drain grating?

Yes. Hinged drain grating and removable covers can be manufactured according to the required dimensions, hinge position, and frame structure.



Special Shaped Steel Grating

   If you need customized products,  CONTACT US!

Related Products

Let's Discuss Your Needs

Every site and each application brings its own needs and challenges. At Hebei Canri Wire Mesh Co.,ltd,we have the experience to help you work through the various options to ensure you make the right decisions. To start the discussions of your needs, get in contact with us today.
