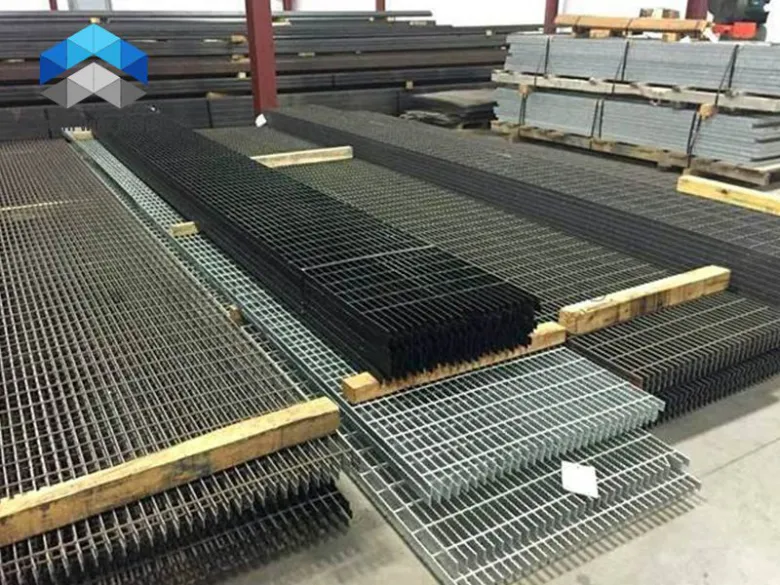

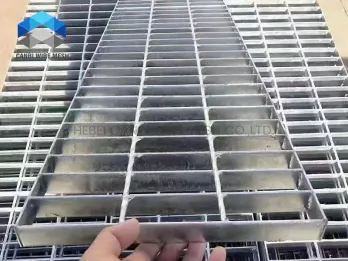

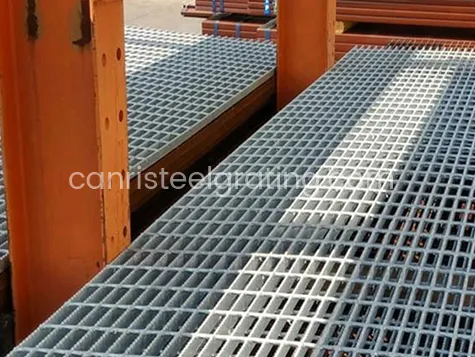

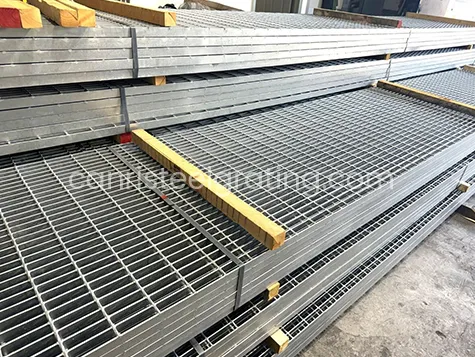

Electro forged Steel Gratings are also called as Open Mesh Steel Gratings or Bar Gratings stand out as a favored option for industrial flooring uses such as walkways, platforms, and drainage covers. These accurately produced gratings are created by arranging uniformly spaced metal flat bars and linking them to crossbars via a specialized electro forging technique. This method permanently bonds the bearing bars and crossbars under heat and pressure, yielding gratings of exceptional strength and durability—perfect for industrial and commercial environments. Extra corrosion protection is offered through galvanization or a red oxide primer coating.

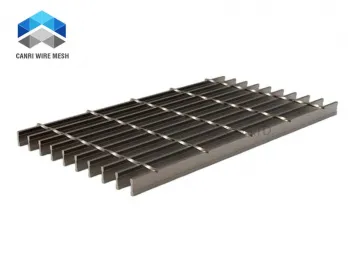

Canri Wire Mesh supplies electro forged grating in flat bar, I-bar, serrated bar, and serrated I-bar configurations. Material, bar size, spacing, surface finish, fabrication details, and panel layout can be selected according to project load, clear span, corrosion environment, installation method, and safety requirements. Whether you are building a pedestrian walkway or a heavy-duty highway cover, our electro forged grating delivers unmatched durability, excellent drainage, and cost-effectiveness.

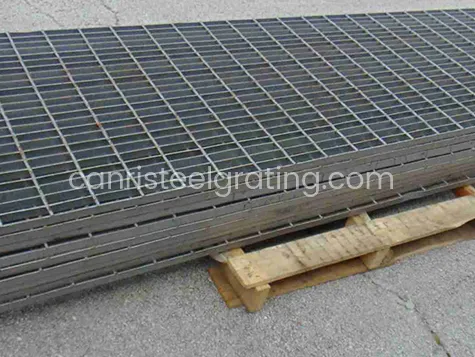

CANRI WIRE MESH is your reliable provider of high-quality Electro Forged steel grating panels. We offer an extensive range of sizes to meet your requirements, with widths reaching up to 1.2 meters and lengths extending to 6 meters.

CANRI WIRE MESH is capable of providing metal grating panels that can be fabricated and customized to meet your needs, ranging from small trenches to large complex structures featuring cut-outs and toe plates for safe access. Customized gratings can be cut from standard grating panels and shaped to fit specific floor areas, ready for installation. Our in-house engineering team, equipped with the latest CAD software, can assist in customizing the gratings according to your specifications.

Choose the Right Grating Configuration

Our welded steel grating is engineered to perform in the harshest environments:

Electro Forged Steel Grating is commonly used for:

• Industrial floor panels

• Maintenance walkways

• Equipment service platforms

• Steel structure access routes

• Factory mezzanines

• Power plant and boiler platforms

• Water-treatment access areas

• Utility and substation walkways

• Machinery platforms

• Stair treads and landings

• Trench covers and drainage access panels

• Material-handling and logistics facilities

• Selected architectural ceilings, screens, and sunshade structures

For coastal, offshore, chemical, high-humidity, or continuously wet environments, material grade and corrosion-protection requirements should be confirmed before production.

Why Choose Electro Forged Steel Grating?

Rigid Welded Construction

Resistance-welded intersections help create a stable grating panel for platforms, walkways, access floors, and equipment service areas.

Open-Grid Performance

The open construction supports drainage, ventilation, light transmission, and the removal of loose debris. This makes electro forged grating suitable for many industrial environments where solid flooring would collect water or dirt.

Flexible Bearing-Bar Options

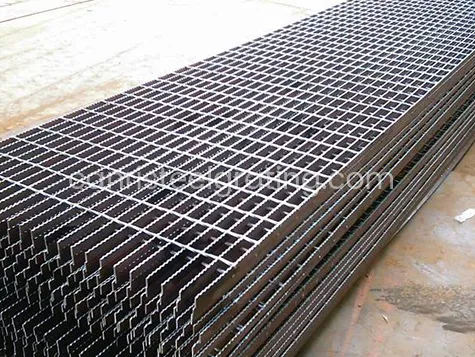

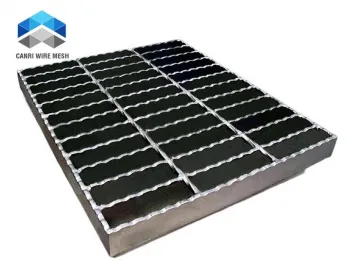

The same electro forging process can be used with flat bars, I-bars, serrated bars, or serrated I-bars. This allows the grating configuration to be selected according to loading, span, panel weight, and slip-resistance requirements.

Drawing-Based Fabrication

Panels can be fabricated for project layouts with cut-outs, notches, edge banding, removable sections, stair tread arrangements, and irregular shapes.

Multiple Surface Finishes

Choose untreated steel, hot-dip galvanized steel, painted steel, powder-coated steel, or other confirmed finishes according to the operating environment and project specification.

Surface Finish and Corrosion Protection

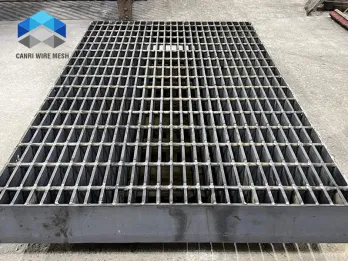

Untreated Steel Grating

Suitable for projects where the customer will complete surface treatment after installation or where corrosion protection is not required.

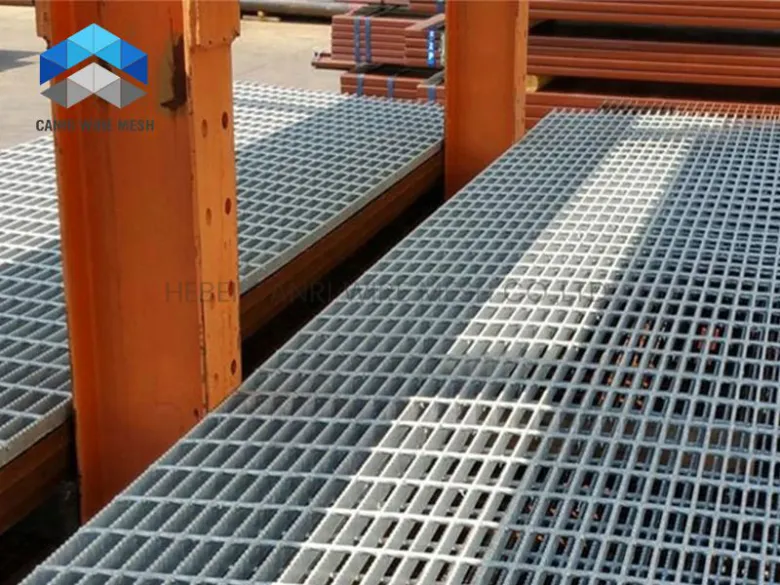

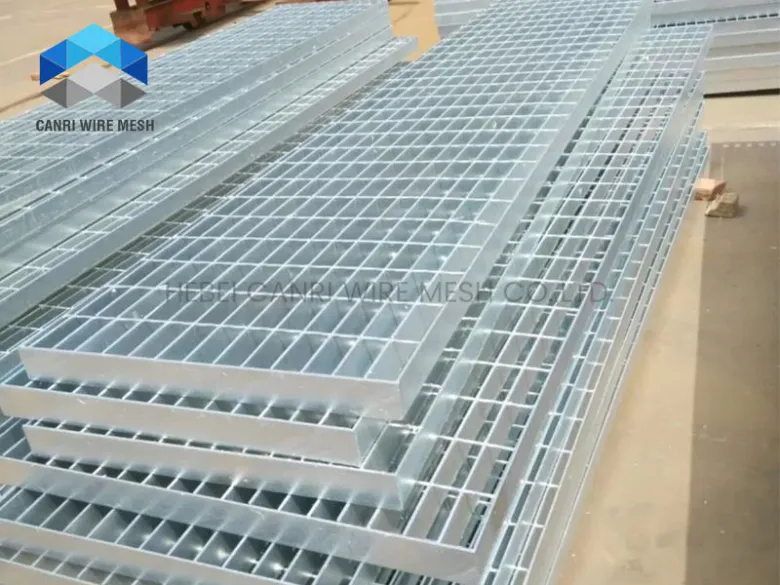

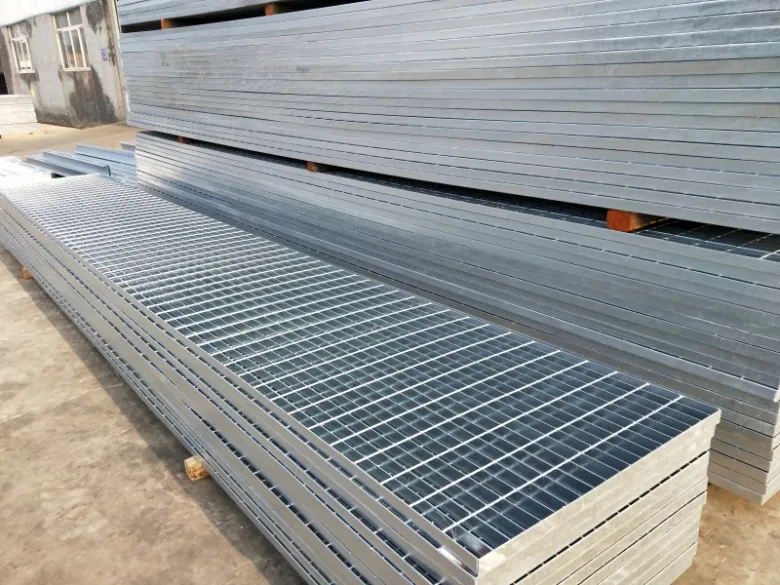

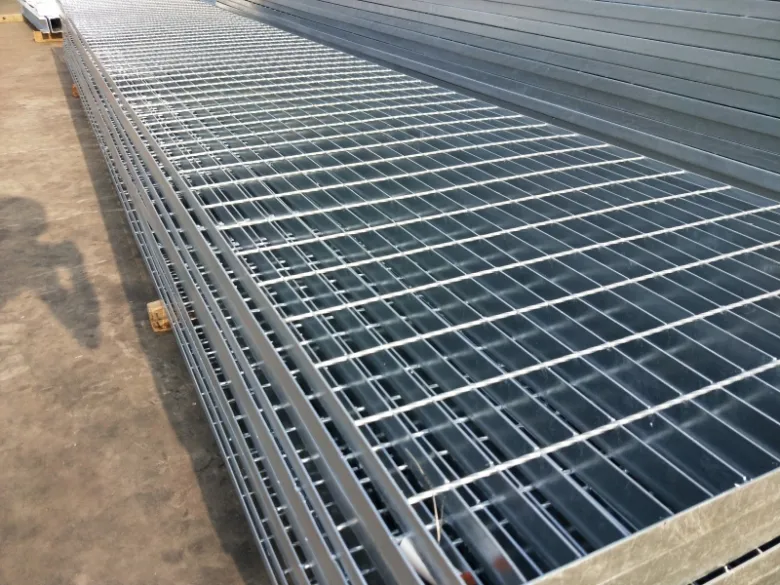

Hot-Dip Galvanized Electro Forged Grating

Recommended for many outdoor, humid, and general industrial applications where stronger corrosion protection is required. The galvanizing standard, coating requirement, and service environment should be confirmed before production.

Painted or Powder-Coated Electro Forged Grating

Suitable for indoor, protected, color-coded, or appearance-sensitive applications where a painted surface is required. Coating type, color, preparation method, and film thickness should be confirmed for the project.

Stainless Steel Electro Forged Grating

May be considered where higher corrosion resistance, hygiene requirements, or specific material specifications apply. Please confirm the required stainless steel grade and operating environment.

Custom Fabrication by Drawing

Canri Wire Mesh can review electro forged grating drawings for project-specific fabrication.

Custom options may include:

• Panel length and width

• Bearing-bar height, thickness, and pitch

• Cross-bar spacing

• Flat bar, I-bar, serrated bar, or serrated I-bar configuration

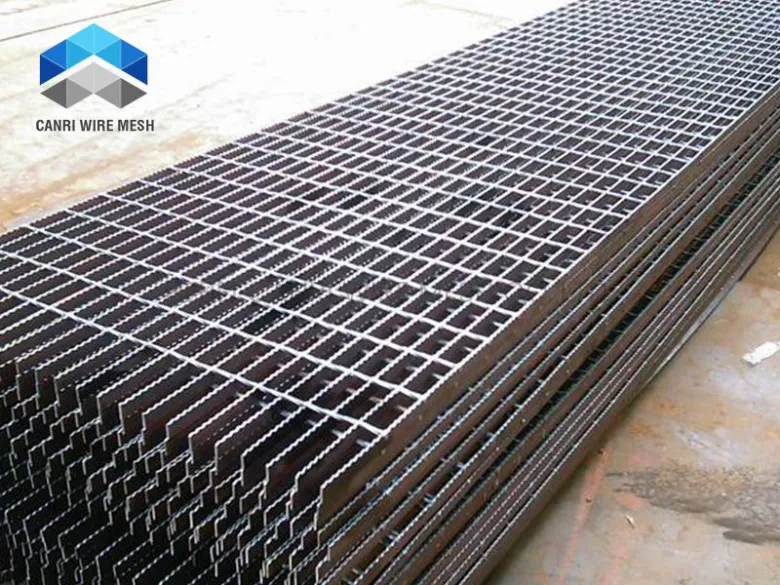

• Plain or serrated walking surface

• Pipe and column cut-outs

• Handrail-post openings

• Equipment-support openings

• Notched corners and irregular panel shapes

• Edge banding

• Removable access panels

• Stair treads and landing panels

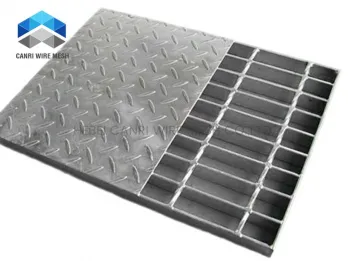

• Toe plates or kick plates

• Mounting clips and fixing accessories

• Panel numbering and installation-sequence packing

• Project labels and export shipping marks

For an accurate quotation, send your CAD drawing, PDF drawing, BOQ, panel schedule, sketch, or reference photos.

Quality Control for Project Orders

For project orders, grating dimensions and welding quality should be checked together with fabrication details and surface treatment requirements.

Typical inspection points may include:

• Material verification

• Bearing-bar size and spacing inspection

• Cross-bar spacing inspection

• Panel length, width, and diagonal checks

• Weld appearance and intersection completeness

• Cut-out and edge-banding inspection

• Surface-treatment inspection

• Quantity and packing verification

Why Canri Electro Forged Grating?

Superior Structural Integrity: Machine-welded joints are stronger than the base metal.

Versatile Load Capacity: Available in various bearing bar sizes to handle loads from light pedestrian to heavy truck traffic.

Hot Dip Galvanized: Standard ASTM A123 galvanization for lifelong rust resistance.

Cost Efficient: Economical solution for large-scale industrial projects.

Tell us where and how the grating will be used. We will review your project details and help identify an appropriate electro forged grating configuration.
