Description of SS Grating
Stainless steel rating has been the standard industrial foot walk product for severe corrosive environments and has been a popular grating choice for many years. Usually the SS steel grating is made of SS304 or SS316.And the cross bar is normally round one,which makes the grating more beautiful. Stainless steel grating is used at chemical plants, food processing facilities, oil and gas producers and is also used in many other commercial and architectural applications. Stainless steel bar grating is a choice for corrosive environments such as chemical, food and hydro processing areas. It is available in welded and pres locked as well as in many bearing bar sizes.
Stainless Steel Bar Grating provides a long-term durable grating solution for caustic atmospheres where corrosion resistance and aesthetic requirements. These stainless steel gratings are used as stairs, platforms, drain covers for different types of projects.We are able to supply and install a variety of bearing bar spacing and thicknesses depending on applications and load requirements.
Unless otherwise specified, stainless steel grating shall have a mill finish and hairline (HL) finishing. Other types of finishing such as abrasive blasting, passivating, or electropolishing also available based on customer requirements.
Specification of SS Grating
| Steel Grating | ||
| No. | Terms | Description |
| 1 | Material | Low carbon steel, mild steel, stainless steel |
| 2 | Material standard | GB700-88,ASTM(A36),BS4360(43A),AS3679 |
| 3 | Bearing bar size | 25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5, 30x5, 32x5,40x5,50x5,65x5.75x6,75x10.....100 x10mm etc; I bar size: 25x5x3,30x5x3,32x5x3,40x5x3 etc; US standard: 1"x3/16", 11/4”x3/16", 1 1/2”x3/16", 1"x1/4",1 1/4"x1/4", 1 1/2"x1/4",1"x1/8", 1 1/4"x1/8", 11/2"x1/8" etc |
| 4 | Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,32.5,34.3,35,38.1,40,41.25,60,80mm etc. US standard:19-w-4,15-w-4, 11-w-4,19-w-2,15-w-2 etc |
| 5 | Cross bar pitch | 38.1,50,60, 76,80,100,101.6, 120mm, 2" & 4" etc |
| 6 | Surface treatment | untreated(black), hot-dipped galvanized ,powder coated,electroplate, painting or as per customers' requirement |
| 7 | Grating standard | YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592 1987,AS1657-1985 |
| 8 | Bearing bar type | FLAT BAR / I-BAR / SERRATED BAR / SERRATED I-BAR |
| 9 | Application | Floor, walkway,industrial platform,stair tread,metal ceiling |
| 10 | Feature | Fine appearance,anti-corrosive,simple installation,light weight, high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion |
| 11 | Payment terms | T/T |
| 12 | Package | Pallets in containers packed by steel strap and worthy sea shipping,or according to customers' requirement |
| 13 | Delivery time | 15 days for a 20GP container |
| 14 | Remarks | Other sizes also can be customized according to customers' requirement |

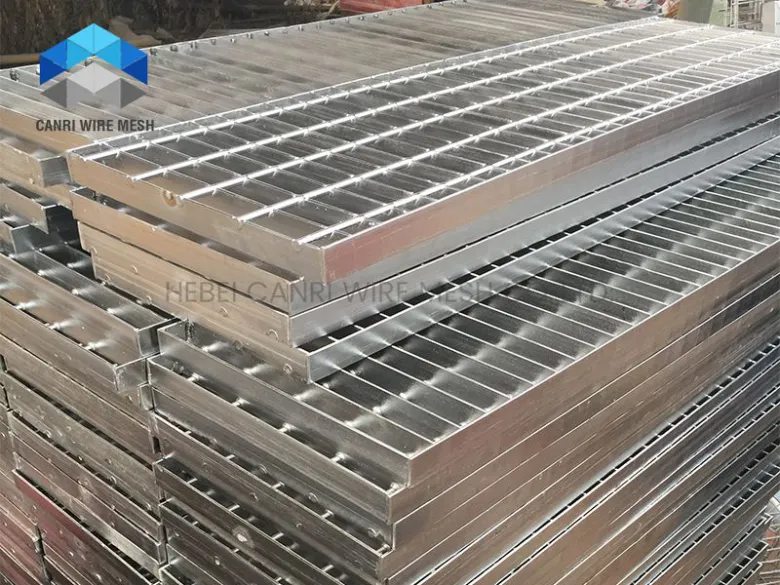

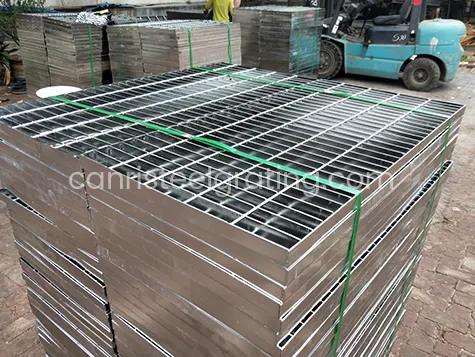

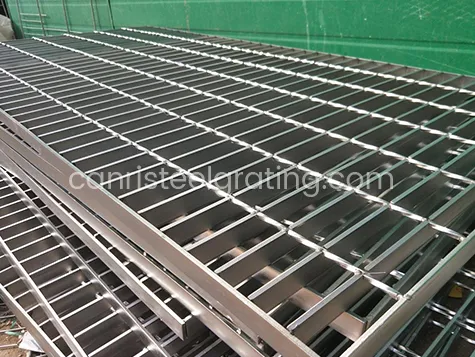

Stainless Steel Grating

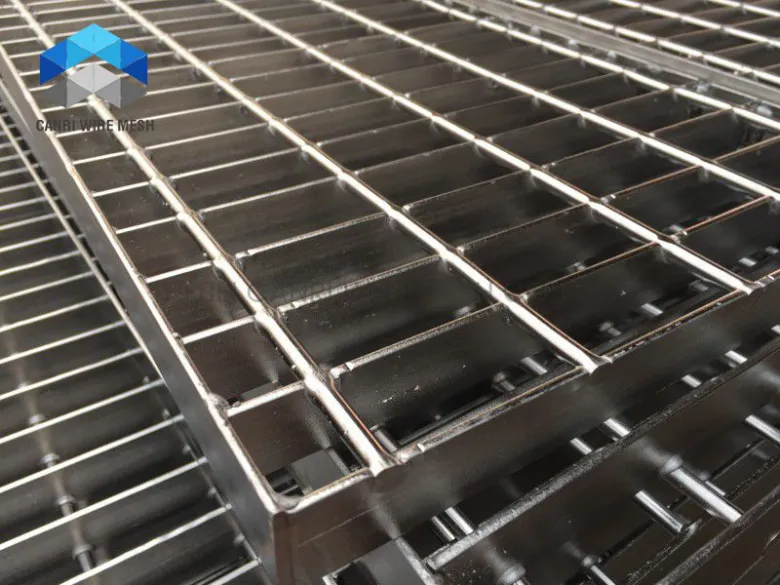

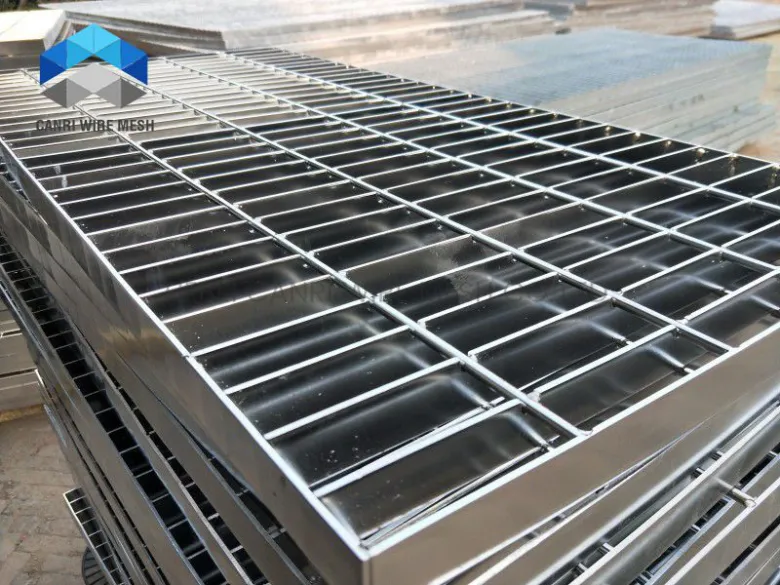

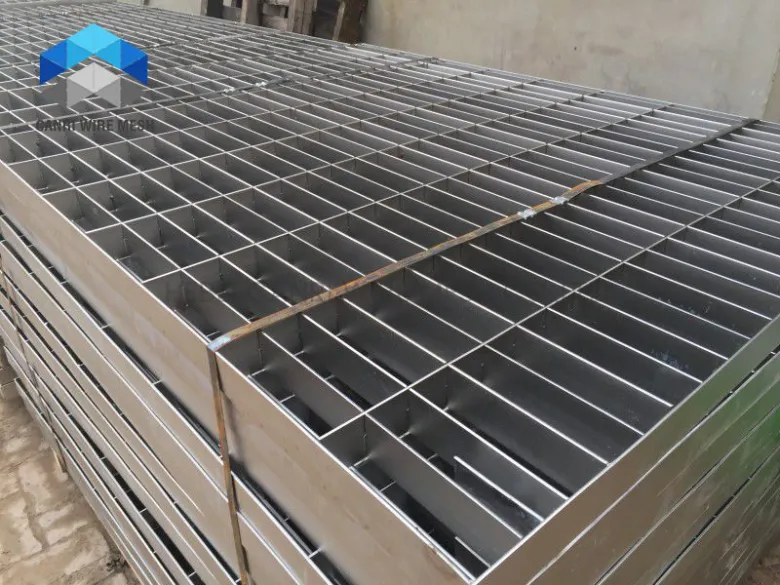

Stainless Steel Bar Grating
Feature of SS Grating
1. Best corrosion and rust resistance for harshest conditions.
2. Can be used in offshore and oily environments as flooring or platform gratings
3. Serrated or non-serrated grating for different slip resistance applications.
4. Ranges of bearing loads for light to heavy duty applications as platform or walkway gratings.
5. Advanced equipment and efficient production for fast delivery.
Types of stainless steel grating

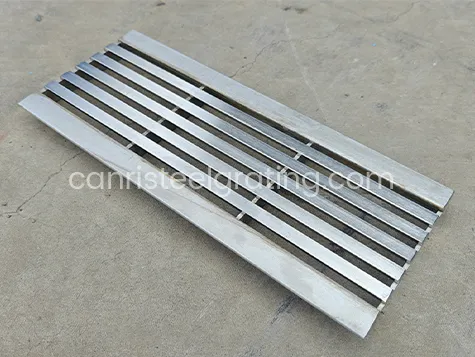

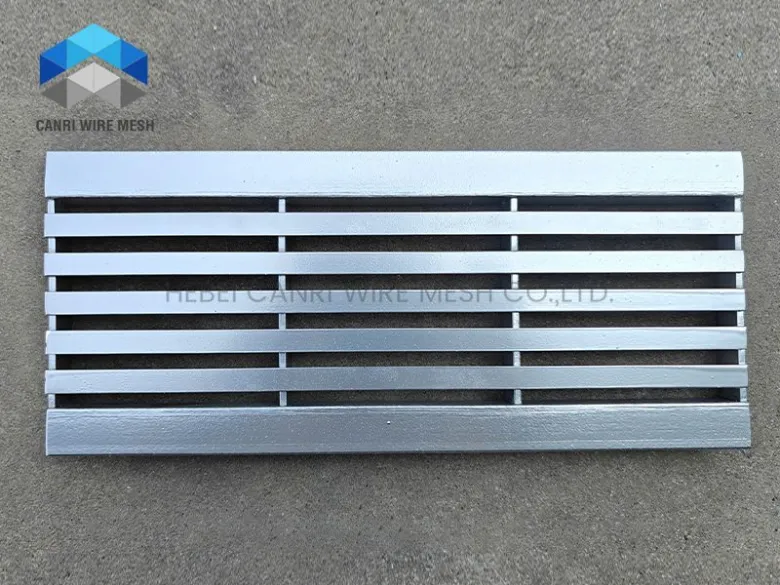

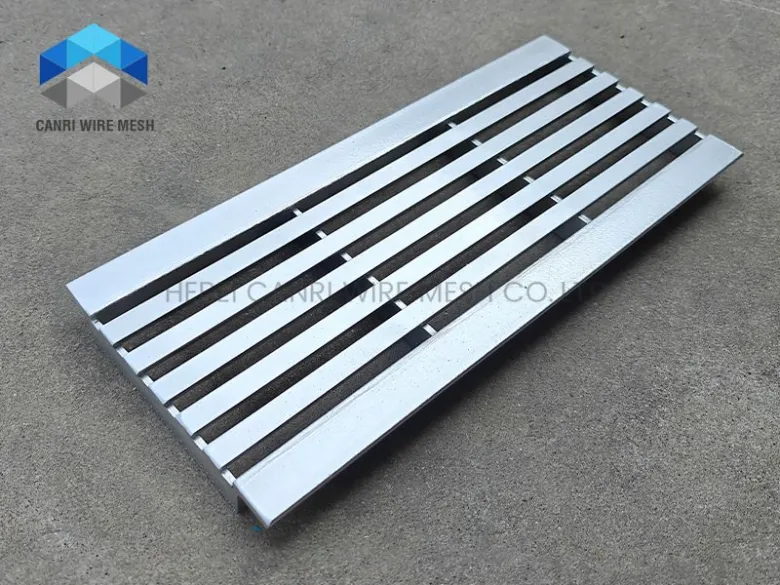

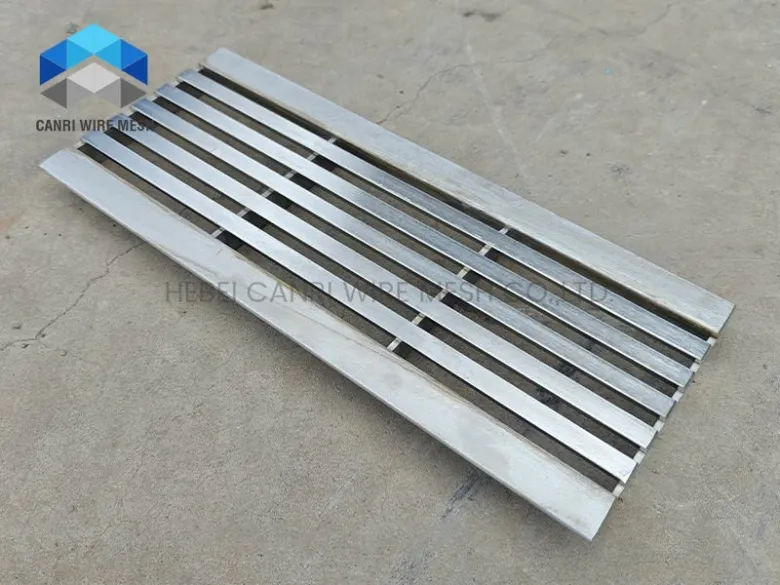

stainless steel grating for drainage without cross bar

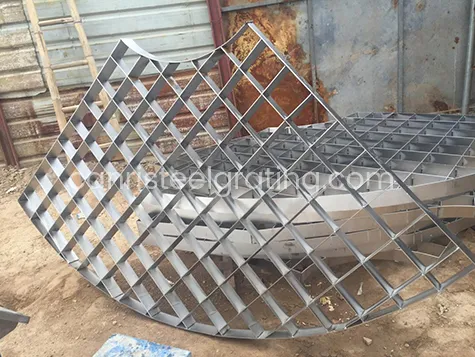

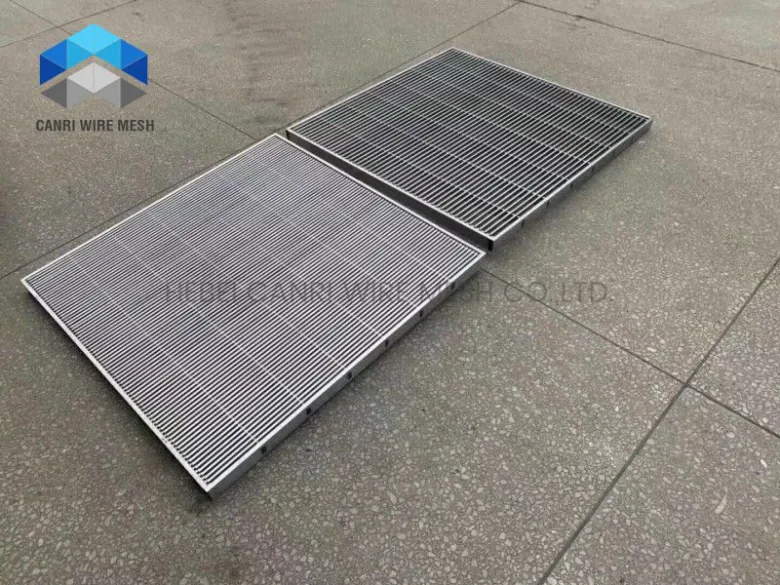

Special shape of stainless steel grating for drainage

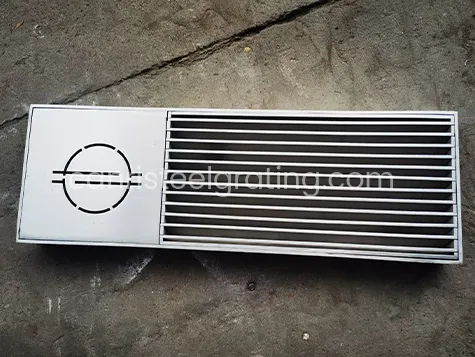

Stainless steel channel drain with customized pattern

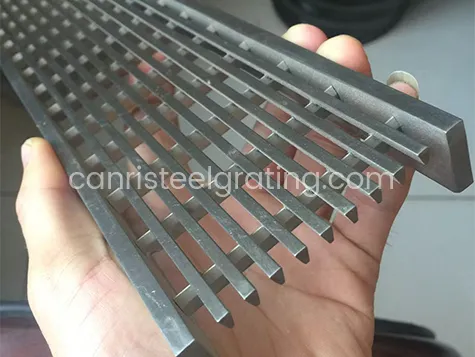

Slim Line “V”profile stainless steel drain grating

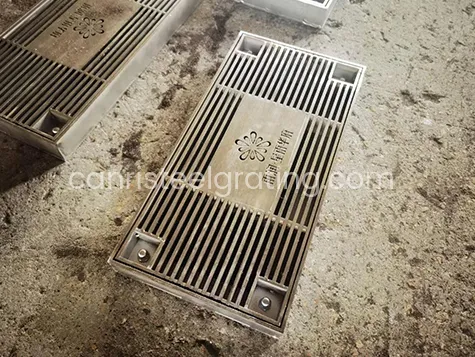

Stainless steel channel drain with customized letter
Linear slot stainless steel channel drain

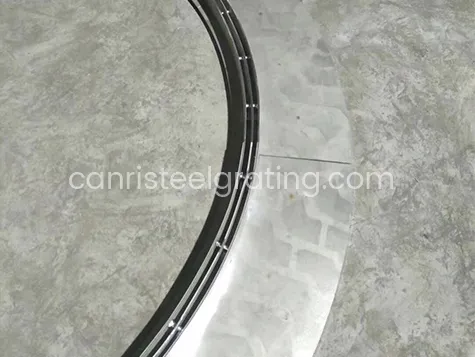

Arc linear slot stainless steel channel drain

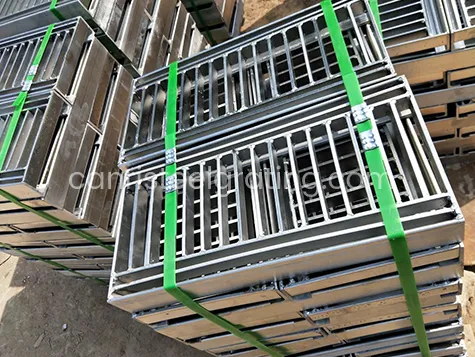

Stainless steel drain grating supply for Singapore market
Application of SS Bar Grating
Stainless steel mesh grating is widely used in the platform, corridor, bridge,well covers, stairs, fencing for petroleum, chemical, power plant,waste treatment plant, civil engineering projects and environmental projects.

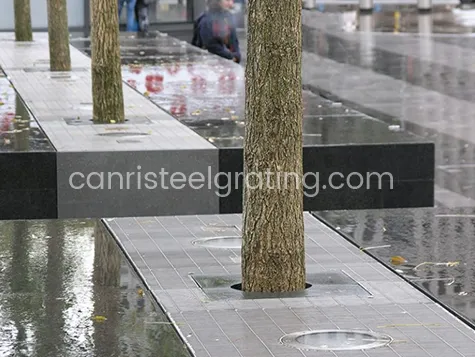

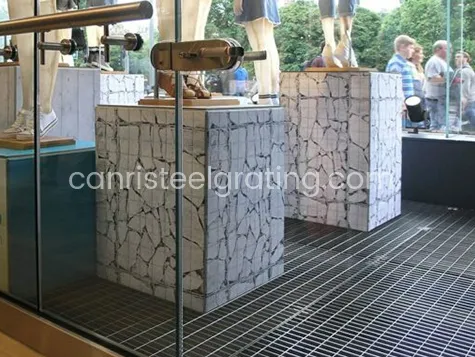

Stainless steel grating used for decoration
Stainless steel grating used for drainage

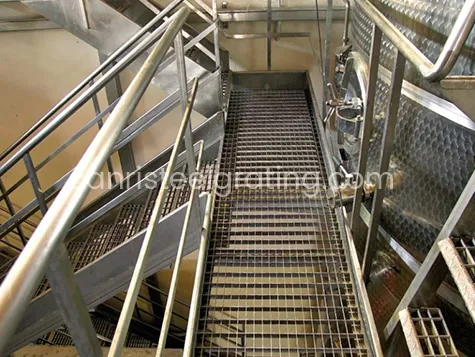

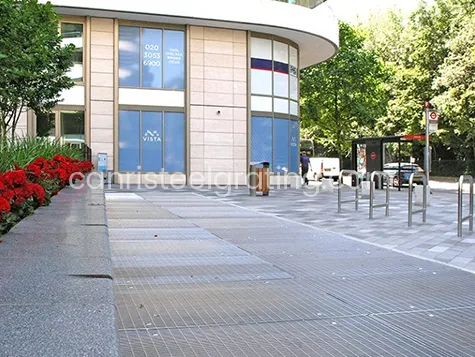

Stainless steel grating used for walkway
Stainless steel grating used for walkway
