Product Description
Mild steel grating is exceptionally sturdy and can be used to support floor slabs, platform stair treads, and elevated walkways. It serves as a cost-effective metal flooring solution that requires no galvanized or hot-dip coating protection, making it suitable for common industrial applications. For better corrosion resistance performance, CANRI WIRE MESH can adopt the galvanized and painted surface treatment to suit more applications and extend its service life.
Specification：
| Mild Steel Grating | ||
| No. | Terms | Description |
| 1 | Material | Low carbon steel, mild steel, stainless steel |
| 2 | Material standard | GB700-88,ASTM(A36),BS4360(43A),AS3679 |
| 3 | Bearing bar size | 25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5, 30x5, 32x5,40x5,50x5,65x5.75x6,75x10.....100 x10mm etc; I bar size: 25x5x3,30x5x3,32x5x3,40x5x3 etc; US standard: 1"x3/16", 11/4”x3/16", 1 1/2”x3/16", 1"x1/4",1 1/4"x1/4", 1 1/2"x1/4",1"x1/8", 1 1/4"x1/8", 11/2"x1/8" etc |
| 4 | Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,32.5,34.3,35,38.1,40,41.25,60,80mm etc. US standard:19-w-4,15-w-4, 11-w-4,19-w-2,15-w-2 etc |
| 5 | Cross bar pitch | 38.1,50,60, 76,80,100,101.6, 120mm, 2" & 4" etc |
| 6 | Surface treatment | untreated(black), hot-dipped galvanized ,powder coated,electroplate, painting or as per customers' requirement |
| 7 | Grating standard | YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592 1987,AS1657-1985 |
| 8 | Bearing bar type | FLAT BAR / I-BAR / SERRATED BAR / SERRATED I-BAR |
| 9 | Application | Floor, walkway,industrial platform,stair tread,metal ceiling |
| 10 | Feature | Fine appearance,anti-corrosive,simple installation,light weight, high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion |
| 11 | Payment terms | T/T |
| 12 | Package | Pallets in containers packed by steel strap and worthy sea shipping,or according to customers' requirement |
| 13 | Delivery time | 15 days for a 20GP container |
| 14 | Remarks | Other sizes also can be customized according to customers' requirement |
Classification of Mild Steel Grating
Carbon steel grating is available in various types based on fabrication methods and surface designs, each with unique characteristics. You can explore our range to find the ideal product for your needs. For specific requirements or view more project cases, feel free to contact us—we’re happy to assist.
Different fabrications
Welded mild steel grating.
Swage-locked mild steel grating.
Press-locked mild steel grating.
Riveted mild steel grating.
 |  |
| Welded Mild Steel Gratin | Swage-Locked Mild Steel Grating |
 |  |
| Press-Locked Mild Steel Grating | Riveted Mild Steel Grating |
Different surface type
Plain mild steel grating.

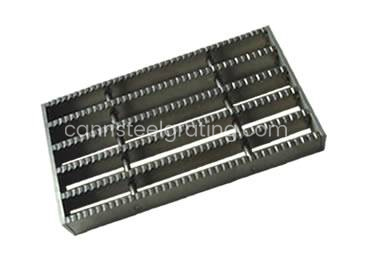

Serrated mild steel grating.
 |  |
| Plain Mild Steel Grating | Serrated Mild Steel Grating |
Features of Mild Steel Grating
Made from mild steel, providing good weldability and machinability.
Strength and Durability: Suitable for medium to heavy loads; can be hot-dip galvanized or painted for corrosion resistance.
Slip Resistance: Serrated or plain surface options enhance safety in wet or oily environments.
Easy Installation: Lightweight yet sturdy, with options for bolted or welded fixation.
Low maintenance cost.
Applications of Mild Steel Grating
Mild steel grating with painted and galvanized surface treatment has a wide range of applications.
The mild steel grating can be used in the municipal engineering as trench and drainage cover to drain water and block wastes in.
The mild steel grating can be installed the stair treads with checker plate or round hole plate nosing for safety go up and down.
The mild steel grating can be used in the port, power plant, workshop or other places as platform and walkway grating.
With flexible size options,surface colors,and coatings, CANRI WIRE MESH delivers Custom Mild steel grating solutions to suit your exact project requirements. Whether you need standard specifications or custom dimensions, our expertise ensures reliable performance and superior quality every time.
Our commitment to quality control, adherence to international standards, and innovative production techniques make CANRI WIRE MESH a trusted supplier for Mild Steel Grating worldwide. Standard profiles are available ex-stock in standard panel sizes however, CANRI WIRE MESH are able to manufacture and fabricate a range of profiles to suit your needs. If you have a requirement outside of standard profile, contact our team today to discuss what we can offer you.
Contact us today to discuss your project and request a quote for premium aluminum alloy screen mesh solutions.

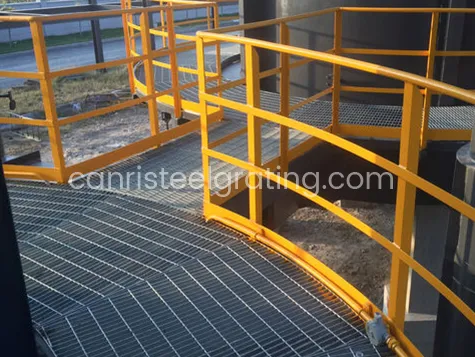

Mild Steel Grating Used As Platform

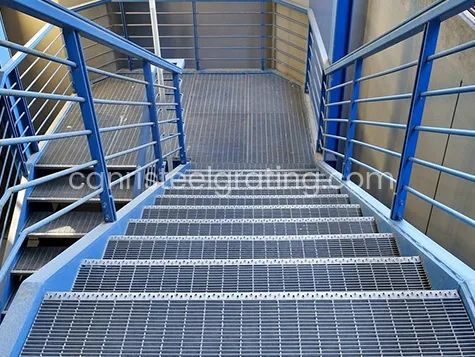

Mild Steel Grating Used As Stair Treads

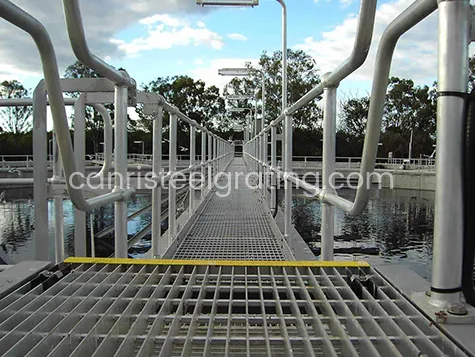

Mild Steel Grating Used As Walkway

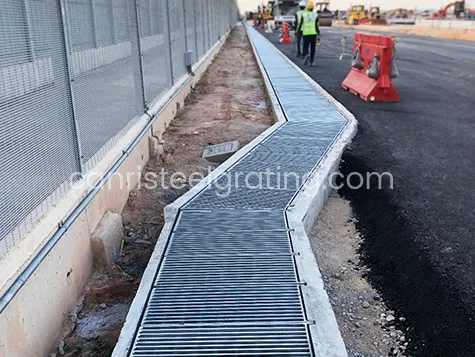

Mild Steel Grating Used As Drain Grating
