Product Description

Platform steel grating is an open-grid flooring solution designed for elevated industrial platforms, equipment access areas, and maintenance structures. Manufactured with load-bearing steel bars connected by cross bars, it provides a stable working surface while allowing water, light, and air to pass through.

As an industrial platform grating manufacturer and supplier, Canri provides welded, press-locked, swage-locked, and riveted steel grating panels. Available in carbon steel, mild steel, and stainless steel, our platform steel grating can be customized by bearing bar size, spacing, surface treatment, and panel dimensions to meet different industrial project requirements.


  • Welded Platform Steel Grating

    Welded Platform Steel Grating

  • Press-Locked Platform Steel Grating

    Press-Locked Platform Steel Grating

  • Swage-Locked Platform Steel Grating

    Swage-Locked Platform Steel Grating

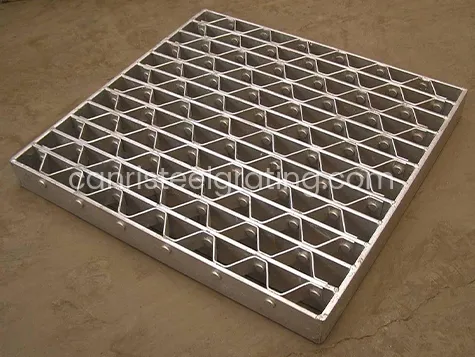

  • Riveted Platform Steel Grating

    Riveted Platform Steel Grating

Platform Steel Grating Types and Specifications

Canri supplies different platform steel grating constructions for industrial flooring, elevated access systems, and equipment maintenance platforms. Each manufacturing method creates a different connection structure to meet specific fabrication and project requirements.


Welded Platform Steel Grating

Welded platform steel grating is manufactured by welding cross bars to load-bearing bars to form a rigid grid structure. It is commonly used for industrial platforms, factory floors, walkways, and equipment maintenance areas.

Press-Locked Platform Steel Grating

Press-locked platform grating is manufactured by pressing cross bars into preformed slots in the bearing bars. It provides a uniform grid appearance and is suitable for industrial platforms and architectural metal flooring.

Swage-Locked Platform Steel Grating

Swage-locked platform grating uses mechanically formed connections to secure the cross bars to the bearing bars. It provides another construction option for industrial access platforms and steel flooring projects.

Riveted Platform Steel Grating

Riveted platform grating uses mechanical rivet connections to join the load-bearing and cross bars. It can be considered for projects specifying a riveted grating construction.

Platform Steel Grating Specifications

Platform grating specifications are determined by bearing bar dimensions, bar spacing, material, manufacturing method, and surface treatment. Canri offers different configurations for standard and customized industrial platform requirements.


SpecificationAvailable Options
MaterialLow Carbon Steel, Mild Steel, Stainless Steel
Material StandardsGB700-88, ASTM A36, BS4360 (43A), AS3679
Bearing Bar TypesFlat Bar, I-Bar, Serrated Bar, Serrated I-Bar
Bearing Bar Sizes25×3, 25×4, 25×5, 30×3, 30×4, 30×5, 32×5, 40×5, 50×5, 75×10 mm and other sizes
I-Bar Sizes25×5×3, 30×5×3, 32×5×3, 40×5×3 mm and other sizes
Bearing Bar Pitch12.5, 15, 20, 25, 30, 32.5, 34.3, 35, 38.1, 40, 60, 80 mm and other options
Cross Bar Pitch38.1, 50, 60, 76, 80, 100, 101.6, 120 mm, 2 in and 4 in
Manufacturing MethodsWelded, Press-Locked, Swage-Locked, Riveted
Surface TreatmentUntreated (Black), Hot-Dip Galvanized, Powder Coated, Electroplated, Painted
CustomizationCustom Panel Dimensions, Bar Sizes, Spacing and Surface Treatments

Key Product Features

  • Load-Bearing Structure: Parallel bearing bars and cross bars form an open-grid structure for industrial working platforms and elevated access areas.

  • Corrosion Protection: Available surface treatments include hot-dip galvanizing, painting, powder coating, and electroplating. Stainless steel options are also available.

  • Open-Grid Design: Allows water, light, and air to pass through, helping reduce water accumulation and supporting ventilation.

  • Slip-Resistant Options: Serrated bearing bars provide additional traction in wet, oily, or potentially slippery working environments.

  • Custom Fabrication: Panel dimensions, bar specifications, spacing, cut-outs, and edge treatments can be customized according to project drawings.


How to Select Platform Steel Grating for Industrial Applications

Selecting the right industrial platform grating requires consideration of working loads, support spans, operating environments, and installation requirements. The following factors help buyers identify suitable grating configurations for different projects.

Select Grating According to Load and Support Span

The load capacity of platform steel grating depends on bearing bar height and thickness, bearing bar spacing, support span, and loading conditions.

Before requesting a quotation, buyers should prepare:


  • Clear support span and panel dimensions

  • Bearing bar direction and specifications

  • Uniformly distributed load requirements

  • Concentrated load requirements

  • Pedestrian, trolley, forklift, or equipment traffic

  • Required deflection limits

  • Supporting beam arrangement

For elevated industrial platforms, grating specifications should match the structural support arrangement and actual operating loads.

Select Material and Surface Treatment According to the Environment

Different industrial environments require different material and surface treatment combinations.



Installation EnvironmentRecommended Grating OptionSelection Consideration
Dry Indoor Factory PlatformsMild Steel or Painted Steel GratingGeneral working conditions and surface protection requirements
Outdoor Industrial PlatformsHot-Dip Galvanized Steel GratingExposure to rain, humidity and outdoor conditions
Wet or Oily Working AreasSerrated Galvanized Steel GratingAdditional surface traction and corrosion protection
Food Processing and Washdown AreasStainless Steel GratingCleaning frequency, hygiene and corrosion exposure
Coastal or Chloride-Exposed FacilitiesStainless Steel or Project-Specific Corrosion ProtectionChloride concentration and environmental exposure
Chemical Processing FacilitiesMaterial and Surface Treatment Selected for Chemical ExposureChemical compatibility and operating conditions

Select the Appropriate Bearing Bar Type

Bearing bar selection affects panel weight, load-bearing performance, and walking surface characteristics.

  • Flat Bar Grating: Suitable for general industrial platforms where a conventional flat walking surface is required.

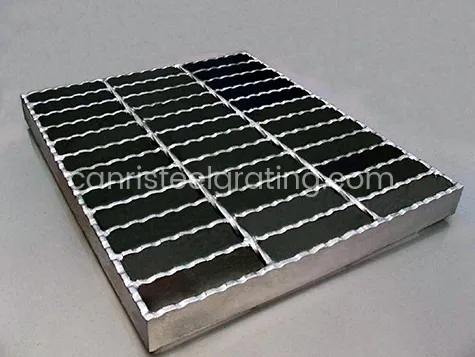

  • Serrated Bar Grating: Provides additional traction in wet, oily, or other potentially slippery working environments.

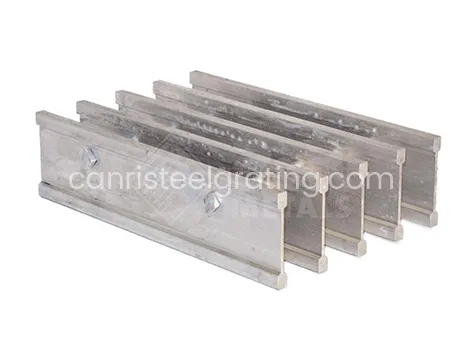

  • I-Bar Grating: Can be considered for platform structures where reducing panel weight is an important design consideration.


Match Platform Grating to Industrial Applications


Canri supplies platform steel grating for different industrial facilities and infrastructure projects.

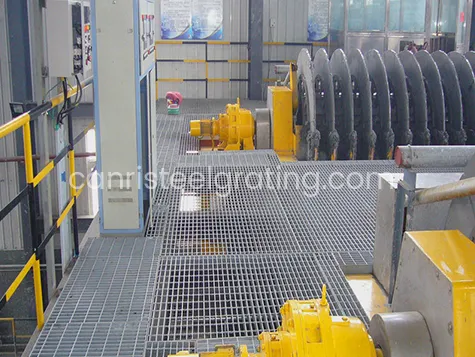

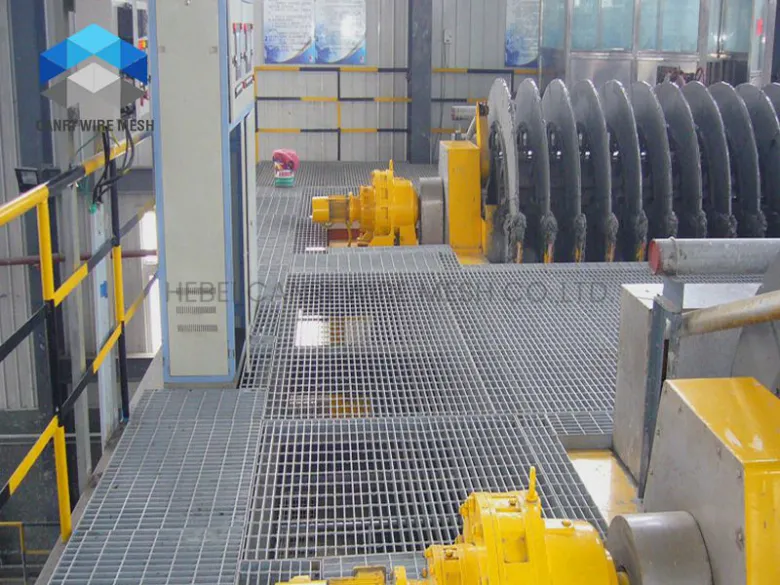

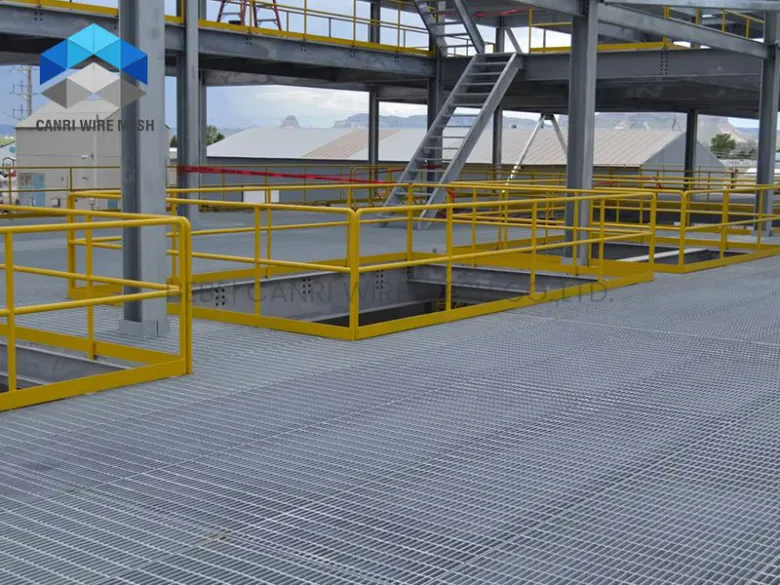

Industrial Plants and Factory Platforms

Steel grating provides open-grid working surfaces for production facilities, equipment areas, and elevated factory structures.

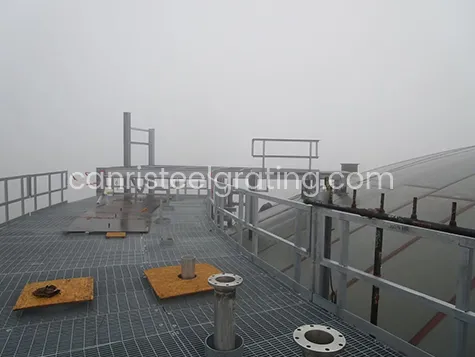

Tank Roof Platforms

Platform grating can be installed around industrial tanks to provide access for inspection, operation, and maintenance. Panel dimensions and support arrangements should match the tank structure.

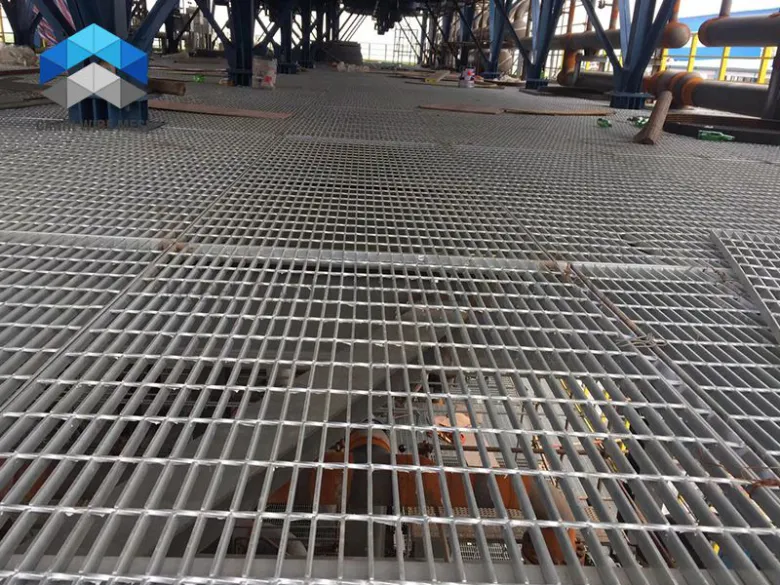

Power Plant Platforms

Steel grating is used for equipment access, elevated operating platforms, maintenance decks, and service areas in power generation facilities.

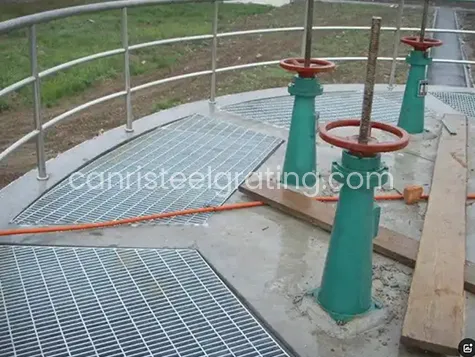

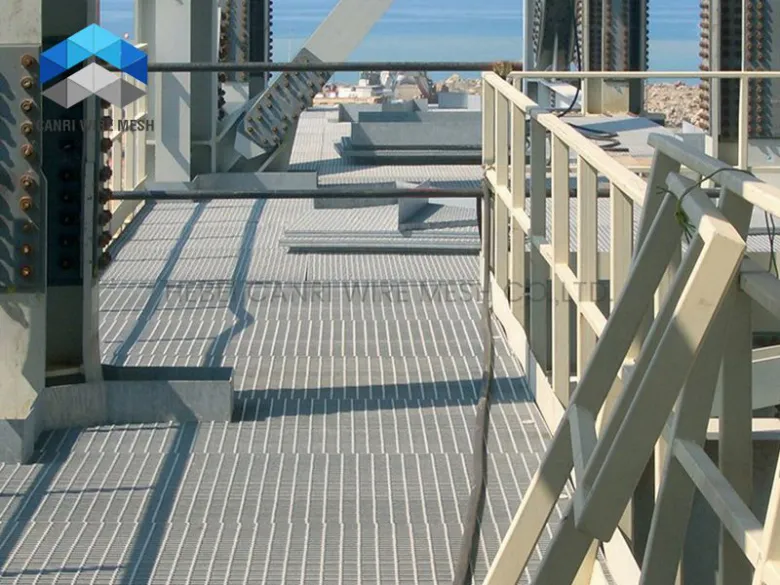

Water Treatment Plant Platforms

Platform grating is suitable for areas around treatment equipment, tanks, pumps, and maintenance facilities where drainage and ventilation are important.

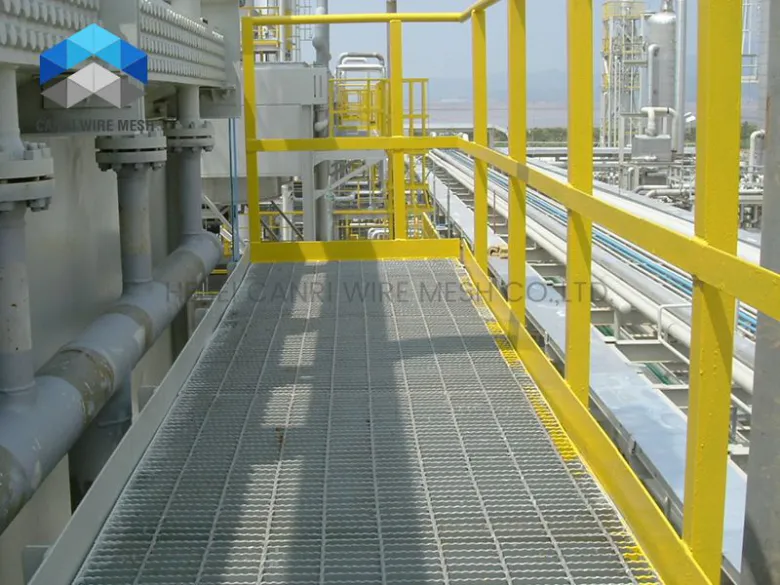

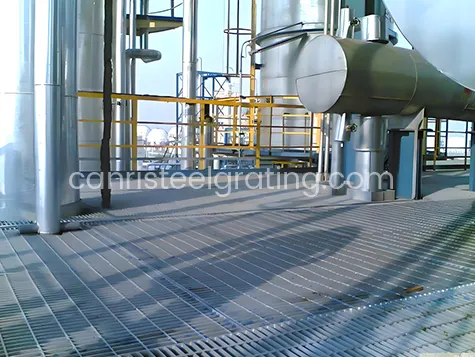

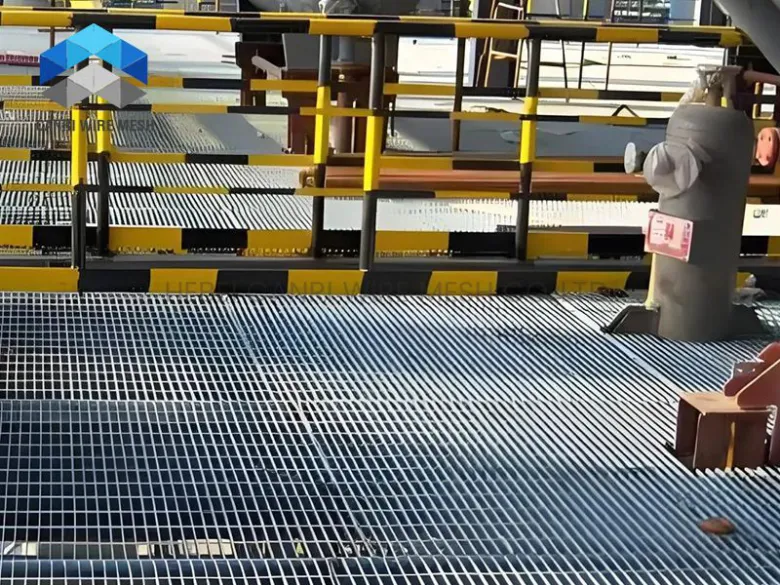

Chemical Plant Platforms

Material and surface treatment should be selected according to chemical exposure, moisture, and operating conditions.

Equipment Maintenance Platforms

Custom platform grating panels can be designed around machinery, pipes, valves, and service openings to provide access for routine inspection and maintenance.


Custom Platform Steel Grating Manufacturing and Supply

As an industrial platform grating manufacturer and supplier, Canri supports customized steel grating requirements for factories, processing plants, infrastructure contractors, and international project buyers.

Custom Manufacturing and Technical Support

Canri provides manufacturing and project coordination support for different industrial grating requirements.

  • Multiple Manufacturing Methods: Welded, press-locked, swage-locked, and riveted grating constructions.

  • Material Options: Low-carbon steel, mild steel, and stainless steel.

  • Flexible Specifications: Different bearing bar sizes, spacing arrangements, and surface treatments.

  • Custom Fabrication: Panel dimensions and configurations can be customized according to project drawings.

  • Technical Coordination: CAD and 3D design support for product dimensions and project requirements.

  • Export Packaging: Steel grating panels can be packed on pallets and secured with steel straps for sea transportation.


What Information Is Needed for a Platform Steel Grating Quotation?

To help determine suitable platform steel grating specifications, buyers can provide:

  1. Project drawings or panel layout.

  2. Required panel length, width, and quantity.

  3. Bearing bar size and spacing requirements.

  4. Support span and load requirements.

  5. Material and surface treatment preferences.

  6. Cut-outs, edge banding, and other fabrication details.

  7. Delivery destination and project schedule.


  • Tank Roof Platform Steel Grating

    Tank Roof Platform Steel Grating

  • Power Plant Platform Steel Grating

    Power Plant Platform Steel Grating

  • Water Treatment Plant Platform Steel Grating

    Water Treatment Plant Platform Steel Grating

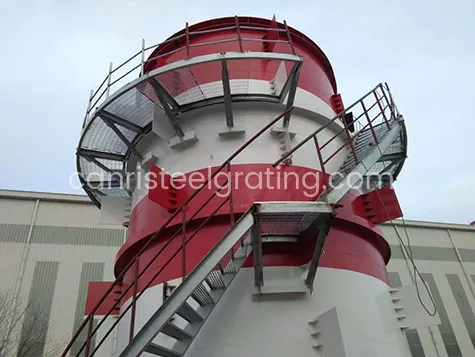

  • Vent Gas Platform Steel Grating

    Vent Gas Platform Steel Grating

  • Chemical Plant Platform Steel Grating

    Chemical Plant Platform Steel Grating

  • Platform Steel Grating Used For Maintenance

    Platform Steel Grating Used For Maintenance

Platform Steel Grating
