Steel floor grating — also called open grid flooring or bar grating — is the dominant flooring choice across the world's industrial infrastructure. Every day, workers walk across it in oil refineries, chemical plants, power stations, wastewater treatment facilities, food processing lines, and mining operations. It replaces solid steel plate where weight needs to be minimized, drainage is essential, or ventilation through the floor plane is structurally valuable.

At Hebei Canri Wire Mesh Co., Ltd., we manufacture industrial floor grating on automated pressure-welding lines in Anping County, Hebei, China. We supply project quantities to engineering contractors, procurement teams, and infrastructure developers across more than 60 countries — with factory-direct pricing, multi-standard compliance, and a 15-day lead time for standard panel orders.

When selecting industrial floor gratings, there are numerous distinct alternatives available,such as steel floor gratings, aluminium floor gratings and fiberglass reinforced plastic(FRP) floor gratings.

Specification：

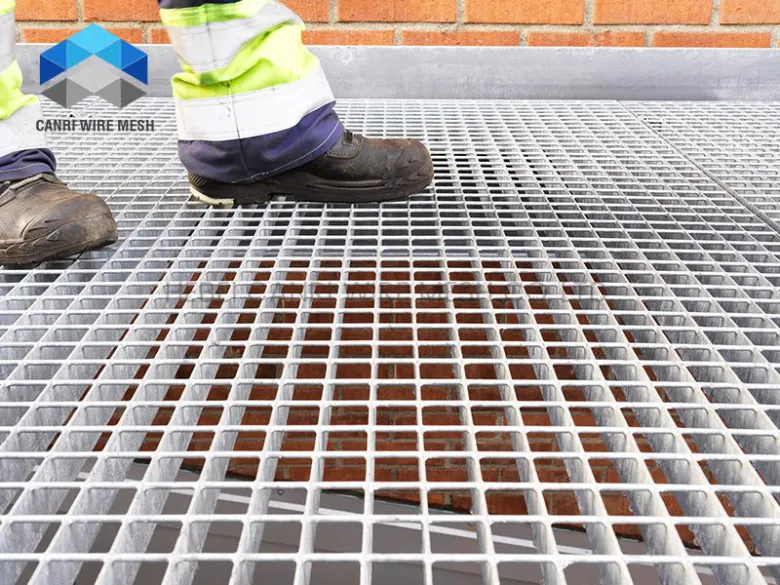

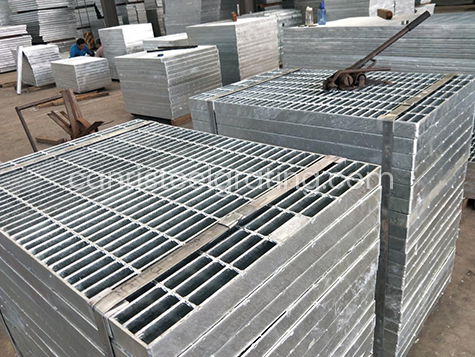

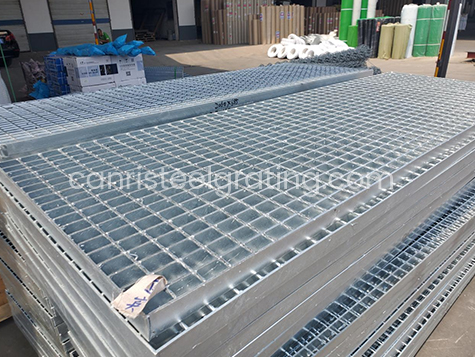

1) Steel Floor Grating

Steel is the most favoured material for floor grating, crafted from a combination of vertical load bars and horizontal cross rods.

As a material, steel provides outstanding durability and corrosion resistance, along with high yield and tensile strength.

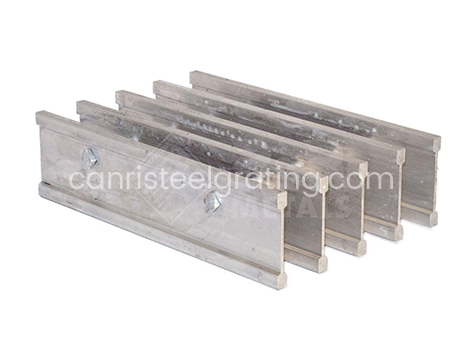

2) Aluminium Floor Gratings

Aluminium floor gratings are frequently selected for their lightweight nature. While aluminium is less strong than steel as a material, its lower weight makes it a prime choice.

Consequently, aluminium floor gratings are widely used in industrial settings where minimizing weight is critical.Additionally, aluminium is often seen as more visually appealing than other materials.

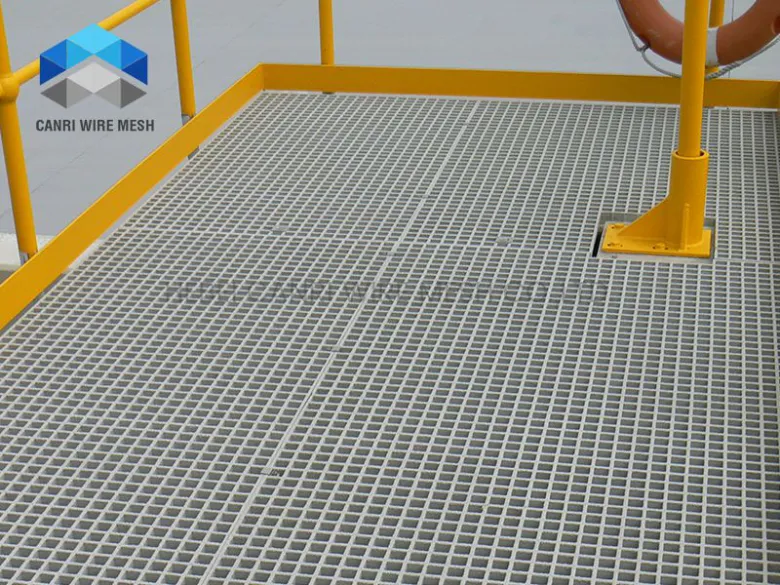

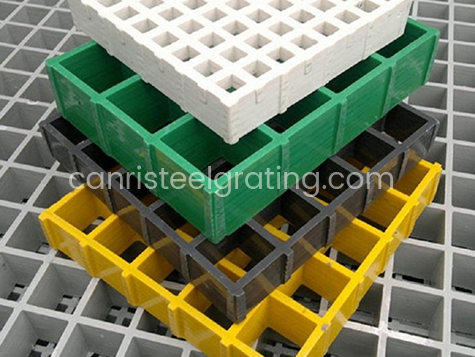

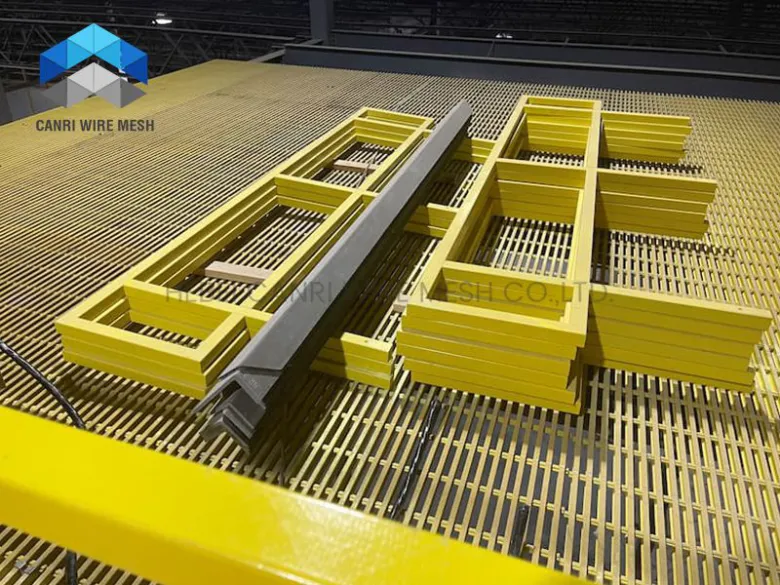

3) Fiberglass Reinforced Plastic(FRP) Floor Gratings

Fiberglass reinforced plastic (FRP) floor gratings are increasingly replacing traditional materials in various industrial applications.

As indicated by their name, they aren’t metal-based. Instead, FRP gratings are produced via moulding or a process called pultrusion.

Both manufacturing methods leverage the combined properties of glass fibers and polymer resin: glass fibers ensure the product’s strength and durability, while polymer resins offer resistance to corrosive materials.

Steel vs. Aluminum vs. FRP: Choosing the Right Floor Grating Material

The current page discusses all three materials. Here's a buying-decision comparison positioned from a Canri supply perspective:

1.  Safety:

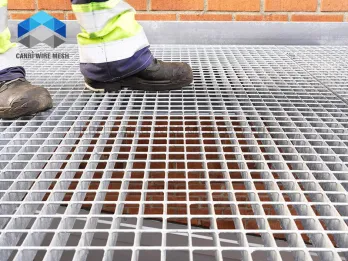

*   Slip Resistance:Serrated surfaces or grit coatings provide excellent traction, even when wet or oily.

*   Drainage:Large open areas (typically 40-60%) allow liquids, debris, and small solids to pass through, preventing pooling and reducing slip hazards.

*   Fall Protection:When properly installed and secured, it provides a safe walking surface at height.

2.  Ventilation and Light Transmission: The open design allows air to circulate freely below and around the grating, preventing the buildup of fumes, moisture, or heat. It also permits natural light to pass through to lower levels.

3.  Strength and Durability: Made primarily from robust materials like carbon steel, stainless steel, aluminum, or fiberglass reinforced plastic (FRP), grating offers high load-bearing capacity relative to its weight. It resists impact and harsh environments (corrosion-resistant options like SS, Al, FRP are crucial for chemical plants or marine settings).

4.  Low Maintenance: Easy to clean (liquids drain through, debris can be hosed off) and resistant to corrosion (with appropriate material choice), minimizing upkeep costs.

5.  Lightweight: Compared to solid plate flooring, grating is significantly lighter, simplifying handling, installation, and reducing structural support requirements.

6.  Fire Resistance: Especially relevant for steel grating and certain FRP formulations.

Chemical Processing Plants
Chemical facilities require flooring that withstands acid splashes, solvent exposure, and frequent washdown cycles. Stainless steel 316 floor grating (for high-acid environments) or hot-dip galvanized with appropriate chemical resistance assessment (for moderate exposure) provides the structural and chemical durability these environments demand. The open-grid design allows spilled liquids to drain immediately, a critical safety requirement under OSHA 29 CFR 1910.23.

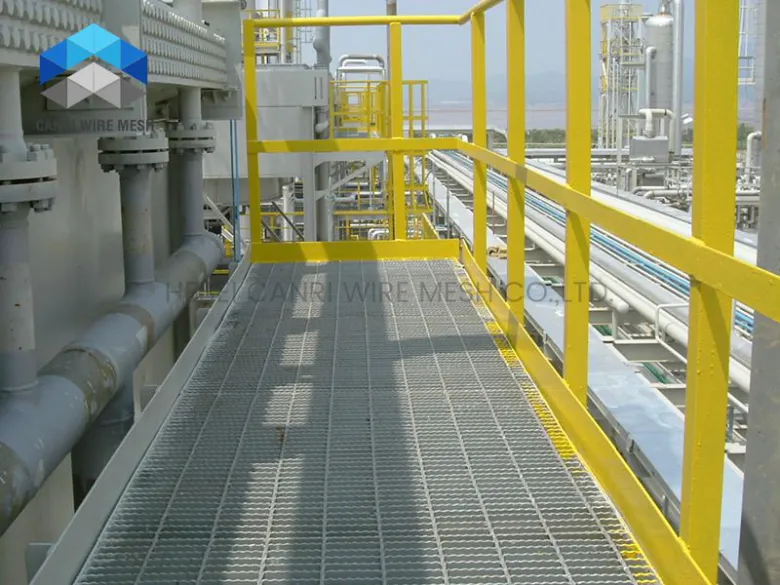

Oil, Gas & Petrochemical Facilities
Refineries and petrochemical plants use steel floor grating across process areas, pipe rack walkways, and equipment access floors at every level of the facility. Galvanized serrated bar grating is the standard specification; stainless steel is used in zones with H₂S or chloride exposure. ANSI/NAAMM and BS 4592 are the most common standards referenced.

Power Generation Plants
Boiler room floors, turbine hall access decks, cooling tower walkways, and substation maintenance floors all use industrial floor grating. Steel grating's fire resistance (no combustible content unlike FRP), load capacity, and compatibility with elevated temperature environments make it the default specification in power facilities. Surface treatment is typically galvanized for outdoor boiler areas and untreated/painted for indoor machine halls.

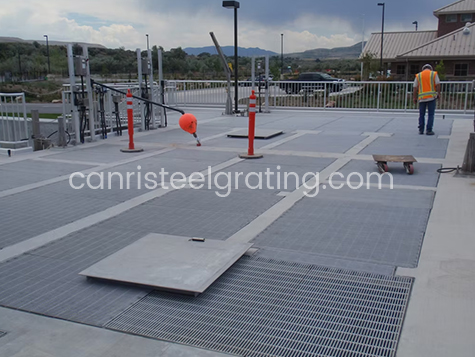

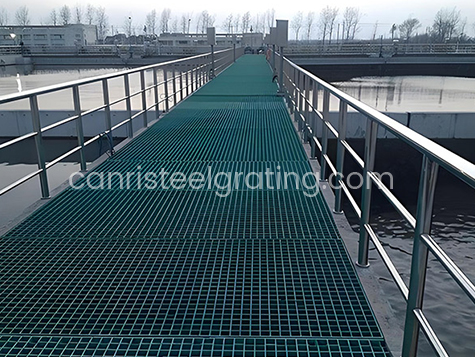

Water & Wastewater Treatment
Treatment plant access decks require flooring that tolerates permanent moisture, mild acids, and regular hose-down cleaning. Hot-dip galvanized steel floor grating resists the pH range (5–9) of most wastewater treatment environments for 20–30+ years without coating maintenance. For more aggressive pH ranges, stainless steel 304 is specified.

Food & Beverage Processing
Food-grade facilities have hygiene-mandated requirements: no crevices for bacterial growth, surfaces that withstand steam cleaning and food-grade detergents, and no zinc or paint that could contaminate product. Stainless steel 316L floor grating with smooth or specially specified surface profiles is mandatory for food contact zones. We supply flat bar and serrated profiles in 316L with mill finish or electropolished surface.

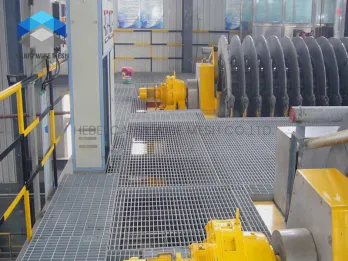

Mining & Heavy Industry
Mining processing plants and heavy industrial facilities require the highest load capacity specifications — heavy bar profiles, close pitch, welded construction, serrated surface. Floor grating in these environments also needs to withstand abrasion from particulate matter. Hot-dip galvanized heavy-duty panels are the standard supply.

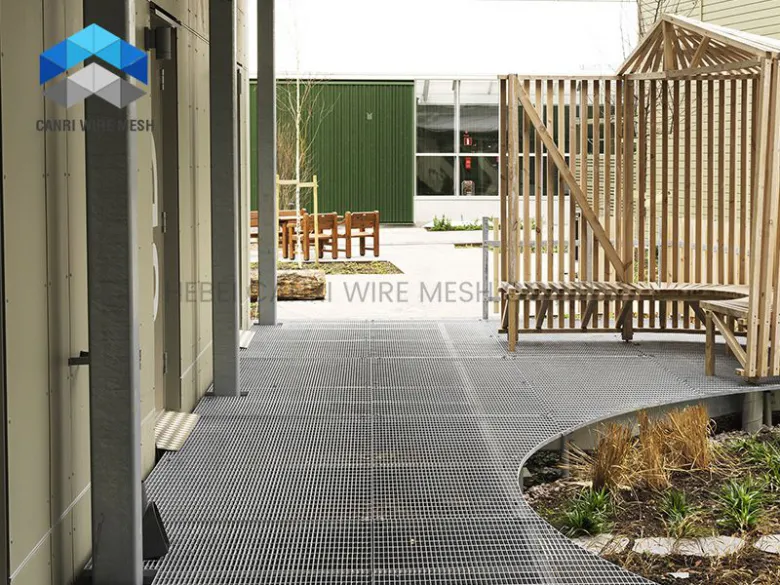

Commercial & Architectural Applications
Beyond industrial uses, steel floor grating appears in commercial mezzanine systems, multi-level retail and office fit-outs, architectural facades and sunscreen panels, and decorative floor inserts in public buildings. These applications often combine structural function with aesthetic requirements — we supply painted, powder-coated, and architecturally finished panels for commercial projects.

Frequently Asked Questions

What is the difference between steel floor grating and solid steel plate flooring?
Solid steel plate (checker plate / tread plate) has no open area — it's a continuous surface. Steel floor grating has 40–80% open area, which provides superior drainage, ventilation, and light transmission, and is significantly lighter per unit area. For most industrial flooring applications, grating is the preferred specification because it eliminates standing liquid (the primary slip hazard), reduces structural dead load, and simplifies installation.

What load can steel floor grating carry?
Load capacity varies by bearing bar size, pitch, clear span, and material. As a general rule, standard pedestrian-duty floor grating (25×5mm bearing bars at 34.3mm pitch) can carry a pedestrian live load of 3–5 kPa across spans up to 1,200mm between supports. Heavy-duty profiles (50×5mm, 65×5mm) at shorter pitch carry equipment loads of 10+ kPa. Our engineering team provides load table data for specific configurations.

Do I need serrated or flat bar steel floor grating for a factory floor?
If the factory floor is dry and not subject to spills or washdown, flat bar is adequate and lower cost. If there's any possibility of liquid contamination — coolant, lubricant, water, cleaning chemicals — serrated bar is mandatory. For outdoor or exposed applications, serrated is always the correct specification.

Can you supply steel floor grating to ANSI/NAAMM standards for US projects?
Yes. We manufacture to ANSI/NAAMM MBG 531 with standard 19-W-4 and other US spacings. Imperial bar size specifications (1"×¼" etc.) are standard production. Full material and fabrication documentation is provided.

What is the standard open area percentage for steel floor grating?
Open area depends on bar spacing. Typical industrial floor grating (19-W-4 spacing) has approximately 75–83% open area. Closer pitch grating (for ADA heel-safe or bicycle-safe applications) can be specified with narrower bar spacing to reduce open area and provide better surface coverage.

Can you fabricate steel floor grating with cutouts for pipe penetrations?
Yes. Custom fabricated steel floor grating panels with cutouts, notches, banding, and non-standard dimensions are a standard service. Provide us with your layout drawing and we'll produce ready-to-install panels. Fabricated panels are galvanized after cutting to ensure complete zinc coverage on all exposed edges.

What's the minimum order quantity?
We supply from single container load quantities (approximately 18–22 tonnes depending on specification). For sample panels before bulk order commitment, contact our export team.

Get a Quote for Steel Floor Grating

Provide us with the following and we'll respond with a specification recommendation and price indication within 24 hours:

• Bar type (flat / serrated / I-bar)

• Bearing bar size and pitch

• Cross bar pitch

• Panel dimensions (standard or custom)

• Surface treatment (galvanized, untreated, stainless, etc.)

• Quantity (tonnage estimate or panel count)

• Destination country and port

• Any applicable standard (ANSI, BS, AS, etc.)
