Singapore Grating

   If you need customized products,  CONTACT US!

Product Description


Canri Wire Mesh is a steel grating manufacturer and supplier in China, providing galvanized steel and stainless steel drain grating for Singapore residential, commercial, industrial, and infrastructure projects. Our product range includes house drain grating, pedestrian grating, vehicular grating, hinged drain covers, and custom drainage panels.

With over 15 years of manufacturing experience, two large-scale pressure welding production lines, and CAD and 3D design capabilities, Canri supports standard and drawing-based orders for contractors, distributors, and project buyers in Singapore.



Singapore Drain Grating Products and Specifications


Canri supplies different drain grating configurations for Singapore projects, including HDB residential drainage, LTA transportation infrastructure, and PUB drainage systems. Products are available in galvanized steel, mild steel, and stainless steel SS304/SS316.


Drain Grating Types and Available Sizes


Different drainage locations require different grating structures. The following are existing product configurations available for reference. Custom dimensions can be manufactured according to project drawings.


Drain Grating TypeAvailable Size (L × W)Typical Application
Vehicular Drain Grating859 × 578 mmDriveways and car parks
Vehicular Drain Grating862 × 570 mmVehicle crossings
Vehicular Drain Grating868 × 578 mmRoads and vehicle-access areas
Vehicular Drain Grating1000 × 570 mmProject-specific drainage
Tray Grating850 × 578 mmDrainage channels
HDB Galvanized Pedestrian Grating1000 × 570 mmPedestrian drainage areas
House Drain Grating1800 × 300 mmResidential and perimeter drains
Hinged House Drain Grating1800 × 300 mmDrains requiring regular cleaning
Flat-Profile House Drain Grating1800 × 300 mmFlush residential drainage
Flat-Profile House Drain Grating with Hinge1800 × 300 mmFlush drainage with maintenance access



Drain Grating Specifications


SpecificationAvailable Options
MaterialLow Carbon Steel / Mild Steel / Stainless Steel
Stainless Steel GradeSS304 / SS316
Maximum Panel WidthUp to 1200 mm
Maximum Panel LengthUp to 6000 mm
Common Drain Grate Length500 mm / 1000 mm / Custom
Flat Bearing Bar25×3, 25×4, 25×4.5, 25×5, 30×3, 30×4, 30×4.5, 30×5, 32×5, 40×5, 50×5 mm
Heavy-Duty Bearing BarUp to 100×10 mm, depending on load requirements
I-Bar25×5×3, 30×5×3, 32×5×3, 40×5×3 mm
Bearing Bar Pitch12.5–80 mm
Cross Bar Pitch38.1–120 mm
Bearing Bar ProfileFlat Bar / I-Bar / Serrated Bar / Serrated I-Bar
Surface TreatmentHot-Dip Galvanizing / Painting / Powder Coating
Panel ShapeRectangular / Cut-to-Size / Special Shapes
InstallationRemovable / Hinged / Frame-Mounted


Final specifications should be selected according to the drainage opening, clear span, loading requirements, and supporting frame.


Singapore Climate, Drainage Standards and Project Selection


Drain Grating for Singapore's Climate


Singapore has a tropical climate with high humidity and frequent heavy rainfall. According to the Meteorological Service Singapore, the 1991–2020 climate records show an average annual rainfall of 2,113.3 mm and approximately 171 rain days per year.

These conditions make drainage efficiency, corrosion protection, and maintenance access important considerations for outdoor grating.

  • Hot-Dip Galvanized Steel: Suitable for general outdoor drainage, residential areas, roads, and infrastructure.

  • Stainless Steel SS304: An option for applications requiring stainless steel corrosion resistance.

  • Stainless Steel SS316: Worth considering for more demanding environments, including locations exposed to chlorides.

  • Hinged Grating: Allows easier access for drainage inspection and cleaning.

Material selection should consider actual exposure conditions, maintenance requirements, and project specifications.


Singapore Drainage Standards and Project Requirements


For Singapore drainage projects, buyers should check the applicable PUB Code of Practice on Surface Water Drainage and relevant LTA Standard Details of Road Elements.

PUB Clause 9.11.1 specifies that gratings over closed drains and culverts should be hinged to fixed frames securely embedded in the drain structures. Heavy-duty mild steel gratings are specified for vehicular loading, while light-duty gratings are used for pedestrian loading. Gratings, frames, and chequered plates are required to be galvanized.

The specification also refers to different grating dimensions and spacing according to the internal width of closed drains.


For example:


Internal Drain WidthGrating SizeSpecified Spacing
W greater than 4 m850 × 1000 mm50 m, staggered
2 m ≤ W ≤ 4 m850 × 1000 mm50 m, staggered
750 mm<W<2 m850 × 1000 mm6 m or 18 m, depending on drain depth
W ≤ 750 mm700 × 850 mm6 m


These dimensions apply to the specific closed-drain provisions in PUB Clause 9.11.4, not every drainage installation. Project drawings and the latest applicable requirements should always be checked before production.


Selecting Drain Grating for Different Projects


Project TypeRecommended GratingKey Considerations
HDB Residential DrainageHouse Drain / Hinged GratingDrain dimensions, frame size, maintenance access
Pedestrian WalkwaysLight-Duty Pedestrian GratingOpening size and pedestrian loading
LTA Road ProjectsVehicular GratingVehicle loads, support span, project drawings
PUB Drainage SystemsGalvanized Drain GratingDrain dimensions, hinged frames, applicable specifications
Commercial Car ParksHeavy-Duty GratingWheel loads and frame support
Industrial DrainageHeavy-Duty Steel GratingOperating conditions, loading, and maintenance


HDB, LTA and PUB Grating Products


Canri's existing Singapore product range includes configurations for residential, transportation, and public drainage applications.


HDB Grating

  • House Drain Grating: 1800 × 300 mm

  • Hinged House Drain Grating: 1800 × 300 mm

  • Flat-Profile House Drain Grating: 1800 × 300 mm

  • HDB Galvanized Pedestrian Grating: 1000 × 570 mm


LTA Grating

  • Vehicular Drain Grating

  • Galvanized Pedestrian Tray Grating with Sound Dampers


PUB Grating

  • Galvanized Pedestrian Grating with Checker Plate

  • Galvanized Vehicular Grating

  • Custom Drain Grating and Frames


For projects with specific HDB, LTA, PUB, or consultant requirements, buyers should provide the applicable drawing number, revision, and project specifications for confirmation before production. These product configurations do not imply automatic authority approval or certification.


Custom Singapore Drain Grating Manufacturing


Canri provides custom drain grating manufacturing based on project drawings, existing drainage openings, and installation requirements.


Customization Options


Custom ItemAvailable Options
Panel WidthUp to 1200 mm
Panel LengthUp to 6000 mm
Drain Grate Length500 mm / 1000 mm / Custom
Bearing Bar Height25–100 mm
Bearing Bar ThicknessCommonly 3–10 mm
Bearing Bar Pitch12.5–80 mm
Cross Bar Pitch38.1–120 mm
Panel StructureFlat / Serrated / I-Bar / Tray Type
FrameCustom dimensions to match drain openings
HingeAvailable for hinged drain covers
Cut-OutsCustomized according to CAD/PDF drawings
MaterialGalvanized Steel / SS304 / SS316
Surface TreatmentHot-Dip Galvanizing / Painting / Powder Coating


Manufacturing and Quality Control


With over 15 years of experience in metal fabrication, Canri operates two large-scale pressure welding production lines and provides CAD and 3D drawing support.

Our manufacturing and quality control processes include:

  • Material and dimensional checks.

  • Pressure welding and weld quality inspection.

  • Grinding of welding residues to improve surface finish.

  • Zinc slag removal after galvanizing.

  • Inspection of panel dimensions and fabrication details.

Canri can also manufacture special-shaped panels, cutouts, notches, and frames according to project drawings.


Why Choose Canri for Singapore Grating Supply?


  • Manufacturing Experience: Over 15 years in metal fabrication.

  • Production Equipment: Two large-scale pressure welding production lines.

  • Design Support: CAD and 3D drawing capabilities for custom projects.

  • Product Range: House, pedestrian, vehicular, and stainless steel drain grating.

  • Custom Fabrication: Dimensions, bar spacing, frames, hinges, and cutouts.

  • Project Support: Production based on confirmed drawings and specifications.


For quotation, please provide panel dimensions, material, bearing bar specifications, loading requirements, quantity, and destination. Existing drain measurements or CAD/PDF drawings are particularly helpful for custom orders.


Singapore Climate, Drainage Standards and Project Selection


Drain Grating Types and Available Sizes

Compare the designs below before selecting your drain cover. Listed dimensions identify existing product examples; the frame dimensions, clear opening and load suitability should be confirmed separately.

Drain Grating TypeListed Size, L × W
Vehicular Drain Grating859 × 578 mm
House Drain Grating1800 × 300 mm
Hinged House Drain Grating1800 × 300 mm
Flat-Profile House Drain Grating1800 × 300 mm
Stainless Steel Drain GratingEnquire with your drawing


Select Drain Gratings by Application

Choose your grating according to how the area is used, how the panel is supported and how the drain will be maintained.

ApplicationStarting Point for SelectionDetails to Confirm
Residential perimeter drainsHouse drain grating or flat-profile coverDrain width, seating depth, opening size and removal access
Footpaths and pedestrian areasGrating with an opening arrangement suited to pedestrian useFootwear, wheeled access, surface requirements and finished levels
Driveways and vehicle crossingsVehicular grating selected for the specified loadingWheel loads, clear span, bearing direction and frame support
Industrial drainageConfiguration selected for the operating environmentTraffic, exposure, cleaning conditions and maintenance frequency
Drains requiring frequent cleaningHinged cover where the installation permitsOpening direction, hinge clearance and access to the channel
Replacement of existing coversGrating matched to the existing opening and supportActual site measurements, frame condition and installation tolerances


Custom Drain Grating Requirements

For custom drain grating enquiries, include the following details so the requested configuration can be reviewed:

  • Dimensions and layout: Panel sizes, drain lengths, quantities and any changes in direction.

  • Material and finish: Required steel or stainless steel grade and surface treatment.

  • Bar arrangement: Bearing bar size, pitch, cross bar layout and clear openings.

  • Frame details: Existing or new frames, seating depth and fixing locations.

  • Opening arrangement: Hinged or removable design, opening direction and access space.

  • Special features: Cut-outs, lifting points, locking details or other drawing requirements.


1) HDB Grating(Housing & Development Board Gratings)


  • Applications: Commonly used in HDB public housing projects, residential area roads, driveways, and walkways.

  • Features: High compressive strength, ideal for areas with frequent pedestrian and light vehicle traffic.

  • Load Capacity: Can withstand a maximum load of 1-2 tons per axle.

  • Vibration Dampening: Provides basic vibration dampening to reduce road impacts from vehicle movements.

  • Corrosive Environment: Available in galvanized steel or stainless steel, making it suitable for coastal areas or regions with heavy rainfall.


Singapore GratingSingapore Grating

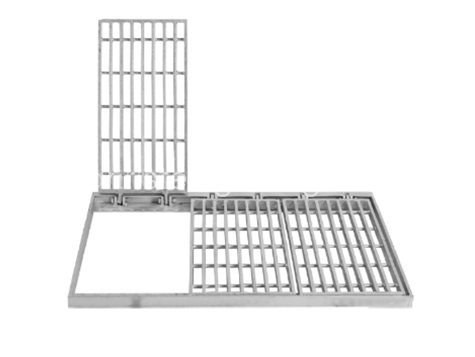

Vehicular grating 859L X 578W MMVehicular grating 862L X 570W MM
Singapore GratingSingapore Grating
 Vehicular grating 868L X 578W MMTray grating 850L X 578W MM
Singapore Grating Singapore Grating

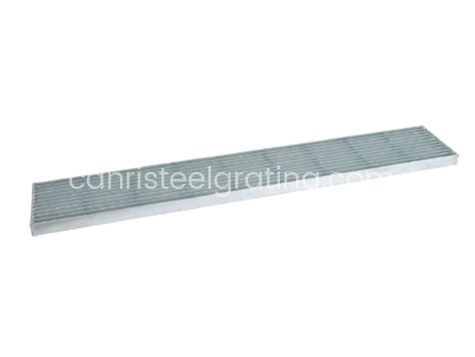

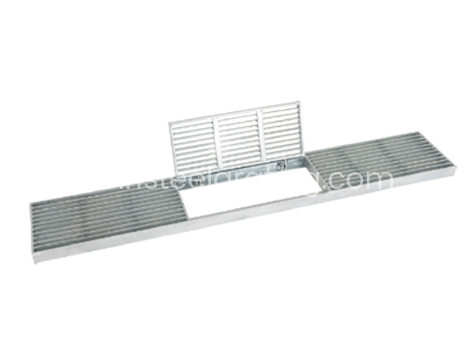

Vehicular grating 1000L X 570W MMHouse drain grating 1800L X 300W MM
Singapore GratingSingapore Grating

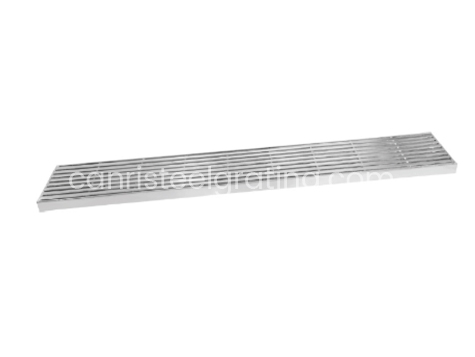

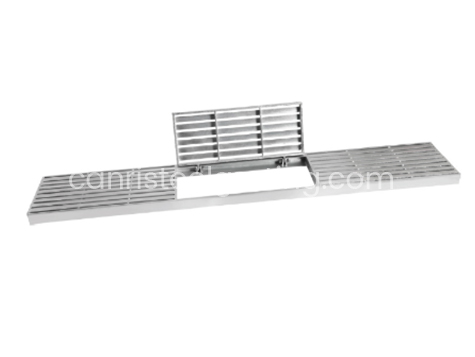

House drain grating with hinge 1800L X 300W MMHouse drain grating flat profile 1800L X 300W MM
Singapore GratingSingapore Grating
House drain grating flat profile with hinge 1800L X 300W MM HDB GAL PED grating 1000L X 570W MM


2) LTA Grating (Land Transport Authority Gratings)


  • Applications: Used in roads, parking lots, and public facility entrances managed by the Land Transport Authority (LTA).

  • Features: Strong design that can withstand high traffic pressure, offering long-term durability.

  • Load Capacity: Can bear a maximum load of 5-10 tons per axle, suitable for large public transport and commercial areas.

  • Vibration Dampening: Provides excellent resistance to vibrations, reducing the impact of heavy traffic.

  • Corrosive Environment: Extremely corrosion-resistant, perfect for environments with harsh weather or high traffic exposure.


Singapore GratingSingapore Grating

Vehicular Grating

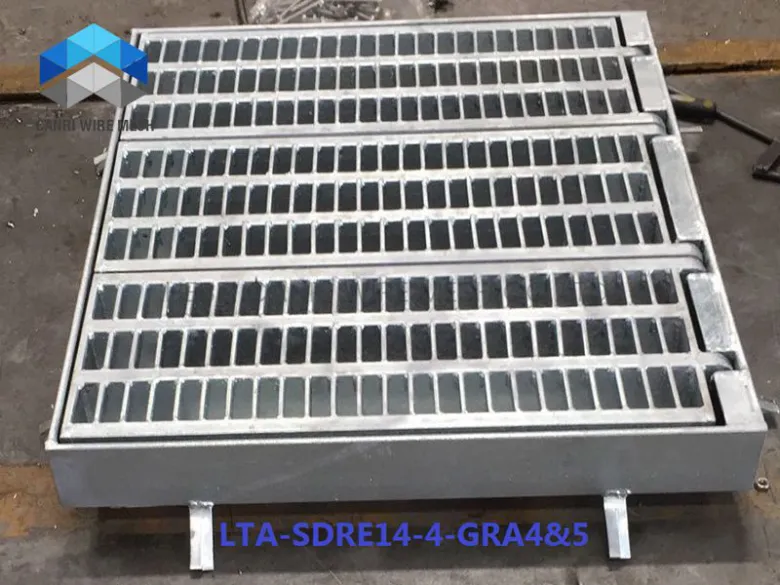

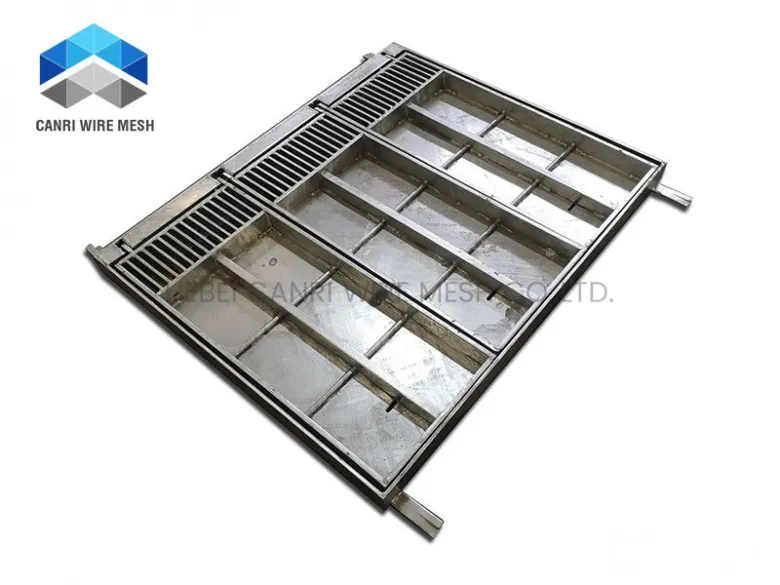

LTA GAL PED tray grating W/sound dampers


3) PUB Grating (Public Utilities Board Gratings)



  • Applications: Used in water channels, sewage systems, and rainwater drainage pipes within the Public Utilities Board (PUB) infrastructure.

  • Features: Strong water resistance, prevents water from washing away grates and surface materials.

  • Load Capacity: Can support a maximum of 2-3 tons per axle, ideal for regular transport and pedestrian traffic.

  • Vibration Dampening: Equipped with vibration-resistant design, making it suitable for long-term public facility use.

  • Corrosive Environment: Provides strong anti-corrosion properties, making it ideal for humid and aquatic environments.


Singapore GratingSingapore Grating

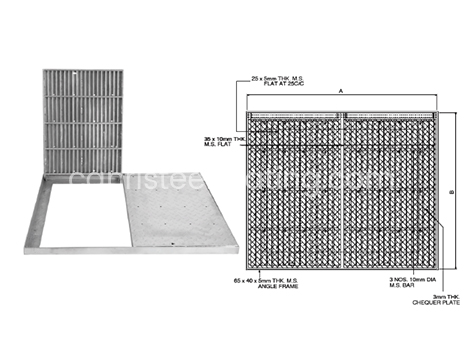

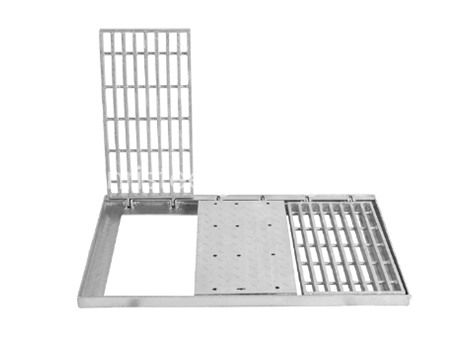

 Galvanized pedestrian grating with checker plate

 Galvanized vehicular grating

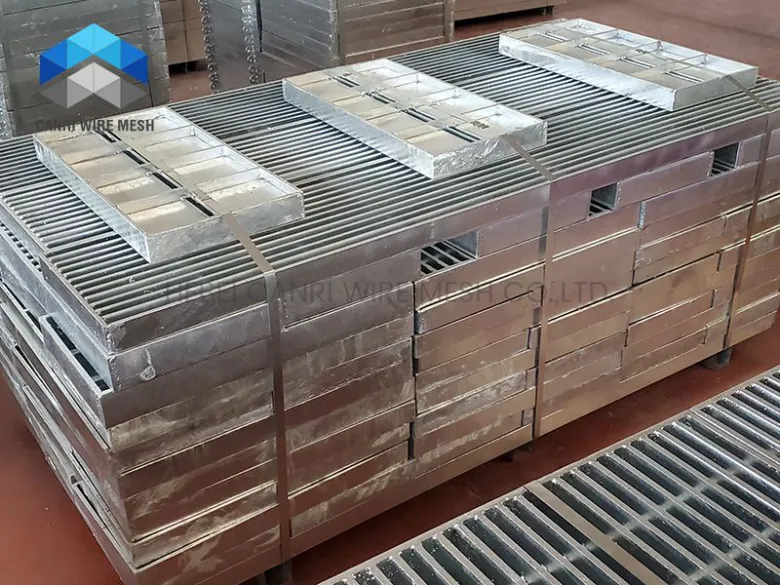

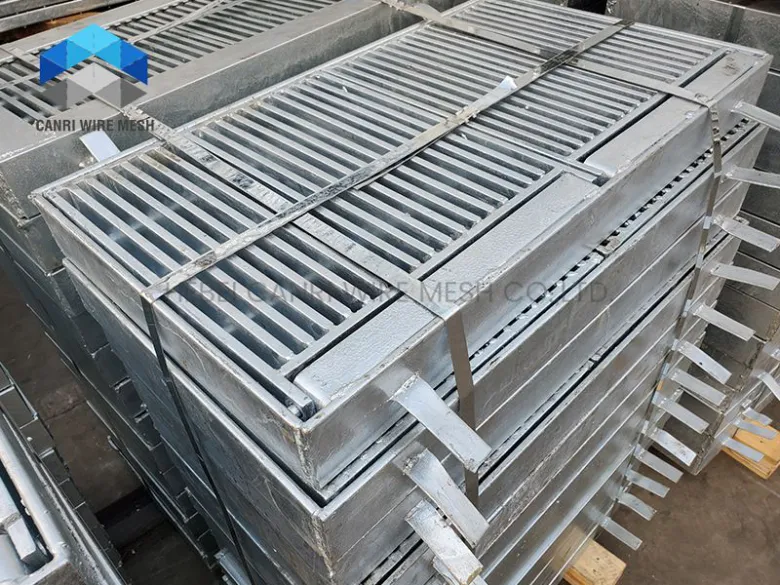

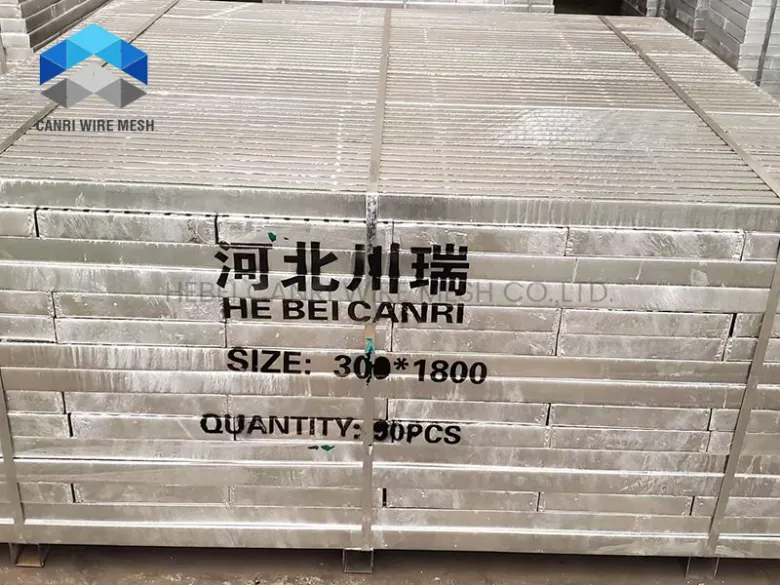

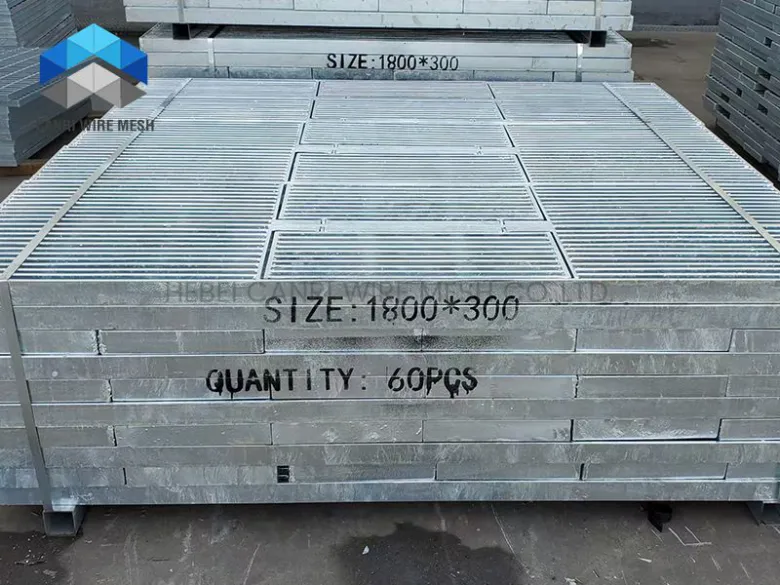

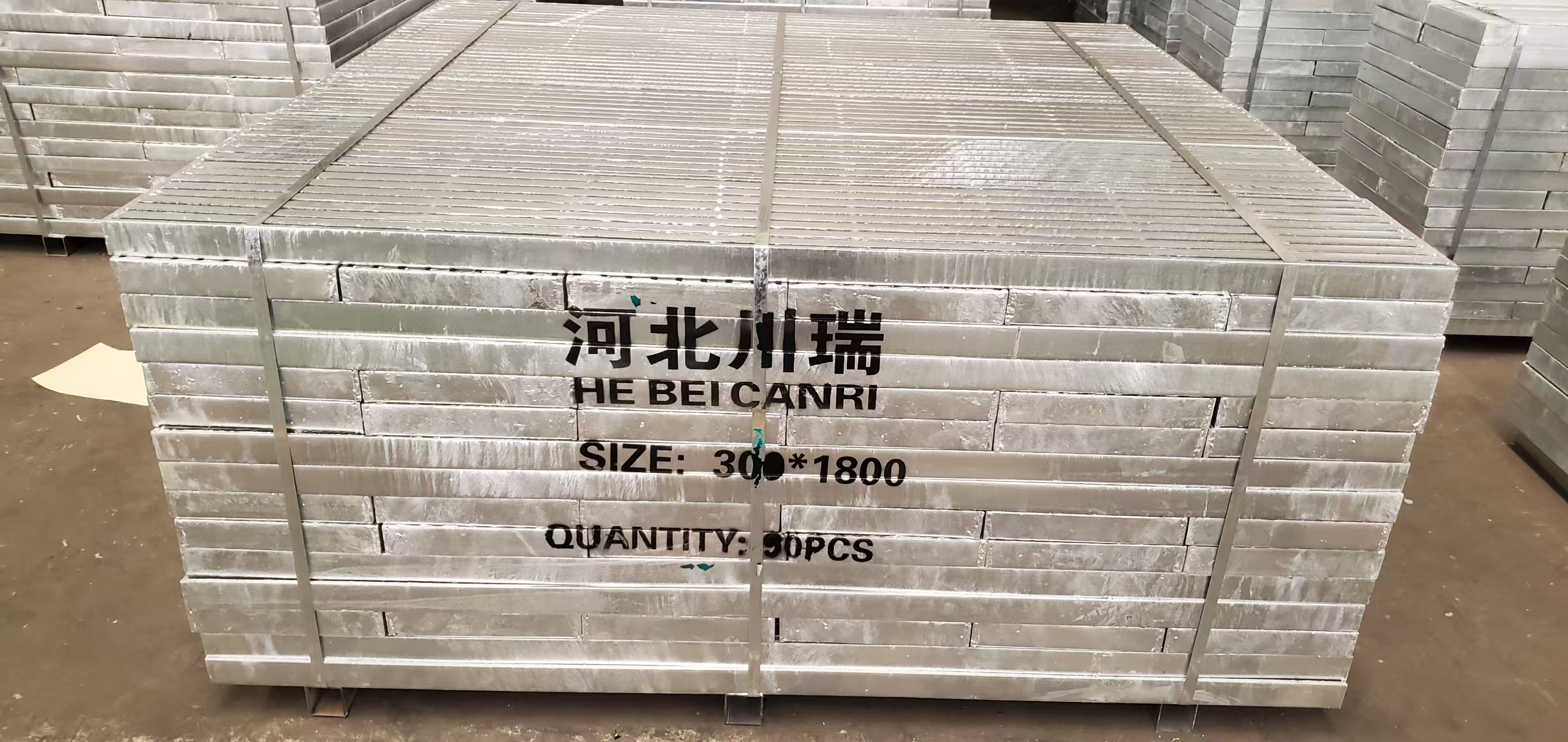

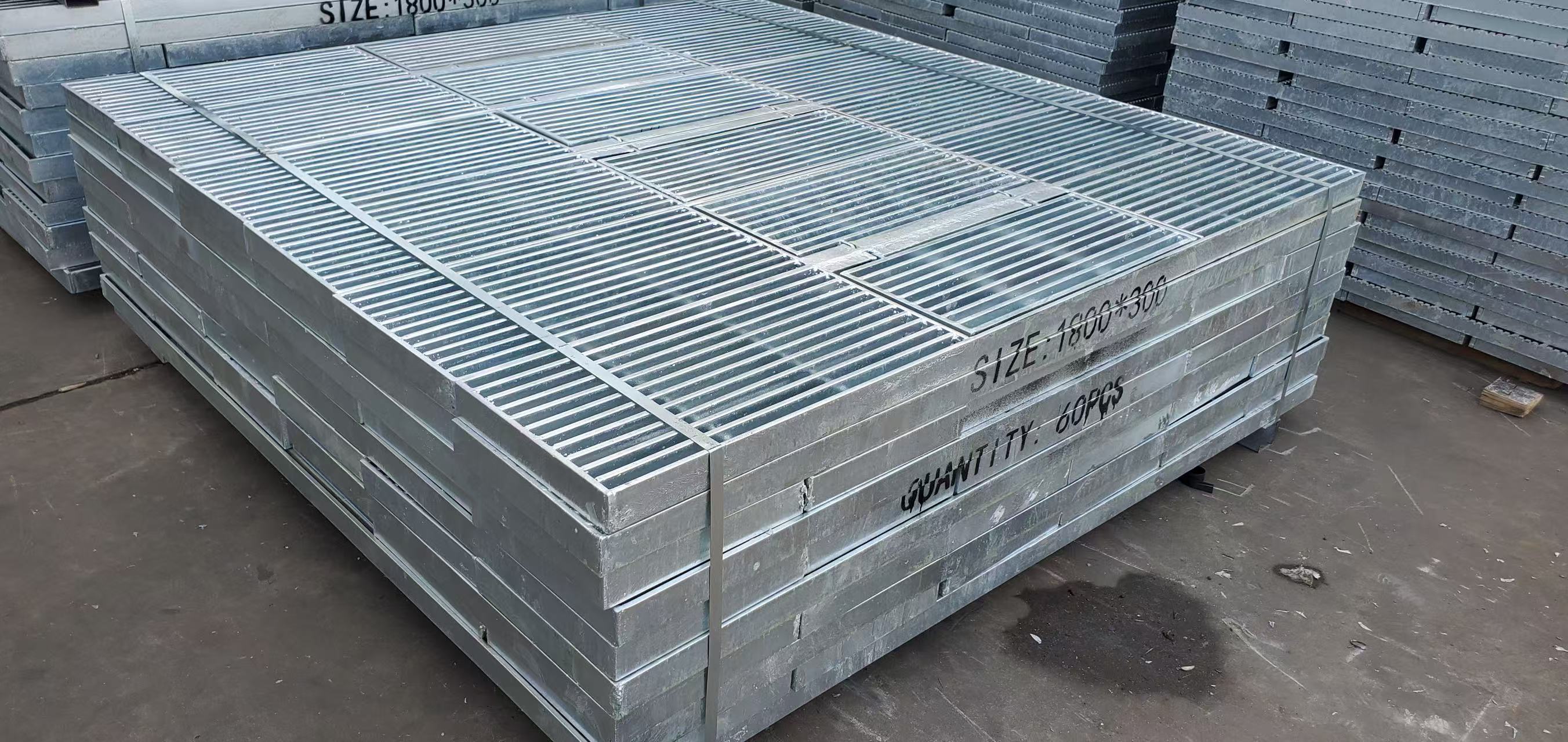

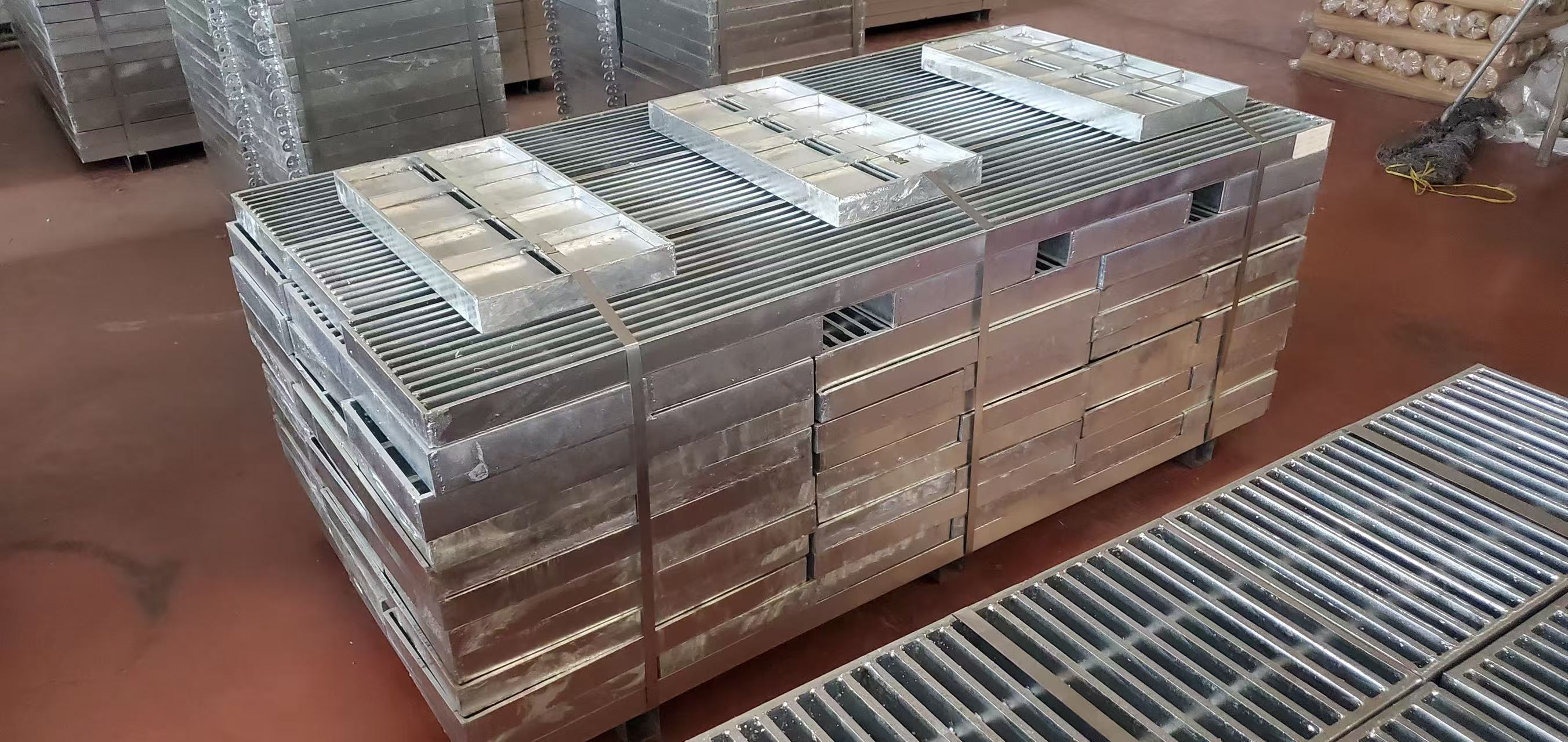

Packing & Loading

Singapore Grating

Singapore Grating

Singapore Grating

Singapore Grating


​Frequently Asked Questions (FAQ)

What types of Singapore drain grating does Canri supply?

Canri supplies house drain grating, pedestrian grating, vehicular grating, hinged drain covers, tray grating, and stainless steel drain grating.


Can Canri manufacture HDB, LTA, and PUB drain grating?

Yes. Canri can manufacture products according to supplied project drawings and specifications. Please provide the relevant drawing number and revision for confirmation.


What is the difference between pedestrian and vehicular drain grating?

Pedestrian grating is designed for walking areas, while vehicular grating requires a structure selected according to vehicle loads, clear span, and frame support. The two should not be interchanged based on dimensions alone.


Should I choose galvanized steel or stainless steel drain grating?

Hot-dip galvanized steel is a practical option for many outdoor drainage applications. SS304 and SS316 can be considered where stainless steel corrosion resistance is required. The choice depends on the environment and project specifications.



Contact Canri Wire Mesh today to learn how our corrosion-resistant gratings, made to meet Singapore's quality standards, can benefit your project. Whether for residential areas with light vehicle traffic or public roads requiring heavy-load traffic support, we provide the best solution for your needs.


Contact Us

Singapore Grating

   If you need customized products,  CONTACT US!

Related Products

Let's Discuss Your Needs

Every site and each application brings its own needs and challenges. At Hebei Canri Wire Mesh Co.,ltd,we have the experience to help you work through the various options to ensure you make the right decisions. To start the discussions of your needs, get in contact with us today.

  • Afghanistan
  • Albania
  • Algeria
  • American Samoa
  • Andorra
  • Angola
  • Anguilla
  • Antarctica
  • Antigua and Barbuda
  • Argentina
  • Armenia
  • Aruba
  • Australia
  • Austria
  • Azerbaijan
  • Bahamas
  • Bahrain
  • Bangladesh
  • Barbados
  • Belarus
  • Belgium
  • Belize
  • Benin
  • Bermuda
  • BBhutan
  • Bolivia
  • Bosnia and Herzegovina
  • Botswana
  • Bouvet Island
  • Brazil
  • British Indian Ocean Territory
  • Brunei Darussalam
  • Bulgaria
  • Burkina Faso
  • Burundi
  • Cambodia
  • Cameroon
  • Canada
  • Cape Verde
  • Cayman Islands
  • Central African Republic
  • Chad
  • Chile
  • China
  • Christmas Island
  • Cocos (Keeling) Islands
  • Colombia
  • Comoros
  • Congo
  • Cook Islands
  • Costa Rica
  • Cote D'Ivoire
  • Croatia
  • Cuba
  • Cyprus
  • Czech Republic
  • Denmark
  • Djibouti
  • Dominica
  • East Timor
  • Ecuador
  • Egypt
  • El Salvador
  • Equatorial Guinea
  • Eritrea
  • Estonia
  • Ethiopia
  • Falkland Islands (Malvinas)
  • Faroe Islands
  • Fiji
  • Finland
  • France, Metropolitan
  • French Guiana
  • French Polynesia
  • Gabon
  • Gambia
  • Georgia
  • Germany
  • Ghana
  • Gibraltar
  • Greece
  • Greenland
  • Grenada
  • Guadeloupe
  • Guam
  • Guatemala
  • Guinea
  • Guinea-Bissau
  • Guyana
  • Haiti
  • Honduras
  • Hong Kong, China
  • Hungary
  • Iceland
  • India
  • Indonesia
  • Iran (Islamic Republic of)
  • Iraq
  • Ireland
  • Israel
  • Italy
  • Jamaica
  • Japan
  • Jordan
  • Kazakhstan
  • Kenya
  • Kiribati
  • North Korea
  • South Korea
  • Kuwait
  • Kyrgyzstan
  • Lao People's Democratic Republic
  • Latvia
  • Lebanon
  • Lesotho
  • Liberia
  • Libyan Arab Jamahiriya
  • Liechtenstein
  • Lithuania
  • Luxembourg
  • Macau
  • Madagascar
  • Malawi
  • Malaysia
  • Maldives
  • Mali
  • Malta
  • Marshall Islands
  • Martinique
  • Mauritania
  • Mauritius
  • Mayotte
  • Mexico
  • Micronesia
  • Moldova
  • Monaco
  • Mongolia
  • Montserrat
  • Morocco
  • Mozambique
  • Myanmar
  • Namibia
  • Nauru
  • Nepal
  • Netherlands
  • New Caledonia
  • New Zealand
  • Nicaragua
  • Niger
  • Nigeria
  • Niue
  • Norfolk Island
  • Northern Mariana Islands
  • Norway
  • Oman
  • Pakistan
  • Palau
  • Panama
  • Papua New Guinea
  • Paraguay
  • Peru
  • Philippines
  • Pitcairn
  • Poland
  • Portugal
  • Puerto Rico
  • Qatar
  • Reunion
  • Romania
  • Russian Federation
  • Rwanda
  • Saint Kitts and Nevis
  • Saint Lucia
  • Saint Vincent and the Grenadines
  • Samoa
  • San Marino
  • Saudi Arabia
  • Senegal
  • Seychelles
  • Sierra Leone
  • Singapore
  • Slovak Republic
  • Slovenia
  • Solomon Islands
  • Somalia
  • South Africa
  • Spain
  • Sri Lanka
  • St. Helena
  • Sudan
  • Suriname
  • Swaziland
  • Sweden
  • Switzerland
  • Syrian Arab Republic
  • Taiwan, China
  • Tajikistan
  • Tanzania
  • Thailand
  • Togo
  • Tokelau
  • Tonga
  • Trinidad and Tobago
  • Tunisia
  • Turkey
  • Turkmenistan
  • Turks and Caicos Islands
  • Tuvalu
  • Uganda
  • Ukraine
  • United Arab Emirates
  • United Kingdom
  • United States
  • Uruguay
  • Uzbekistan
  • Vanuatu
  • Vatican City State (Holy See)
  • Venezuela
  • Viet Nam
  • Virgin Islands (U.S.)
  • Wallis and Futuna Islands
  • Western Sahara
  • Yemen
  • Zambia
  • Zimbabwe
  • Montenegro
  • Serbia
  • Palestine
  • South Sudan
  • Jersey
+86 182 3295 3336
sales@canristeelgrating.com yidazhao@gmail.com
